Key Lock Assembly

  1. Make a groove on the head of special bolts (A) by a punch.

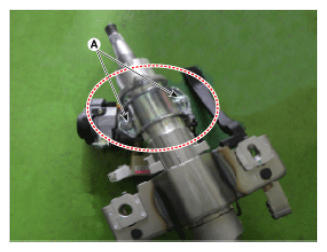

    Fig 1: Special Bolts
    G09743613Courtesy of KIA MOTORS AMERICA, INC.
  2. Loosen the special bolt using a screw driver and then remove the key lock assembly from the steering column assembly.
  3. Reassembly is the reverse of the disassembly.
