Components And Components Location: Component

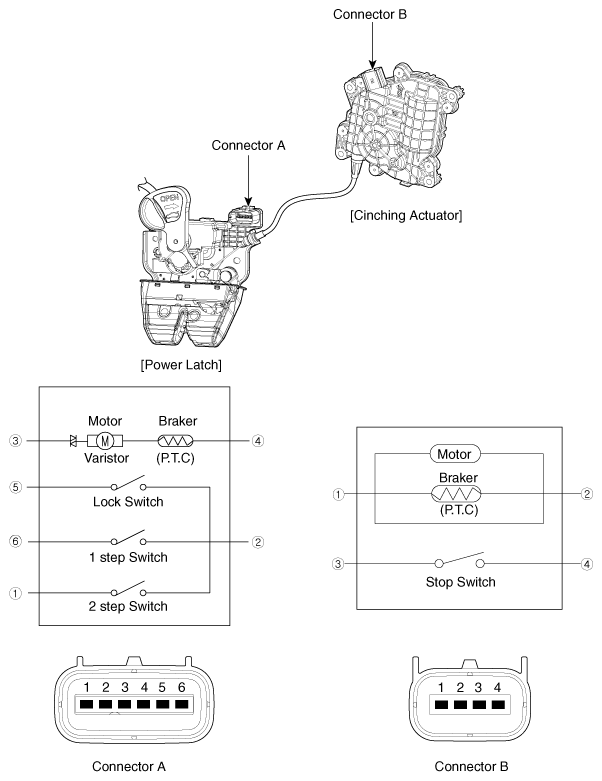

Fig 1: Identifying Power Latch Assembly Connectors
G10715876Courtesy of KIA MOTORS AMERICA, INC.
