Trunk Open Switch
Check for continuity between the trunk open switch terminals.

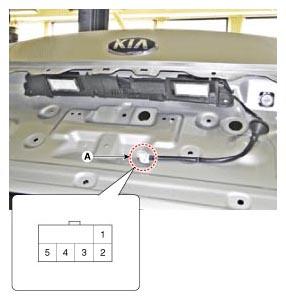

Fig 1: Identifying Trunk Open Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
If continuity is not specified, inspect the switch
Fig 2: Trunk Open Switch Terminal Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Trunk Open Switch Terminals Chart
Courtesy of KIA MOTORS AMERICA, INC.
