BCM Connector Terminals: Notes

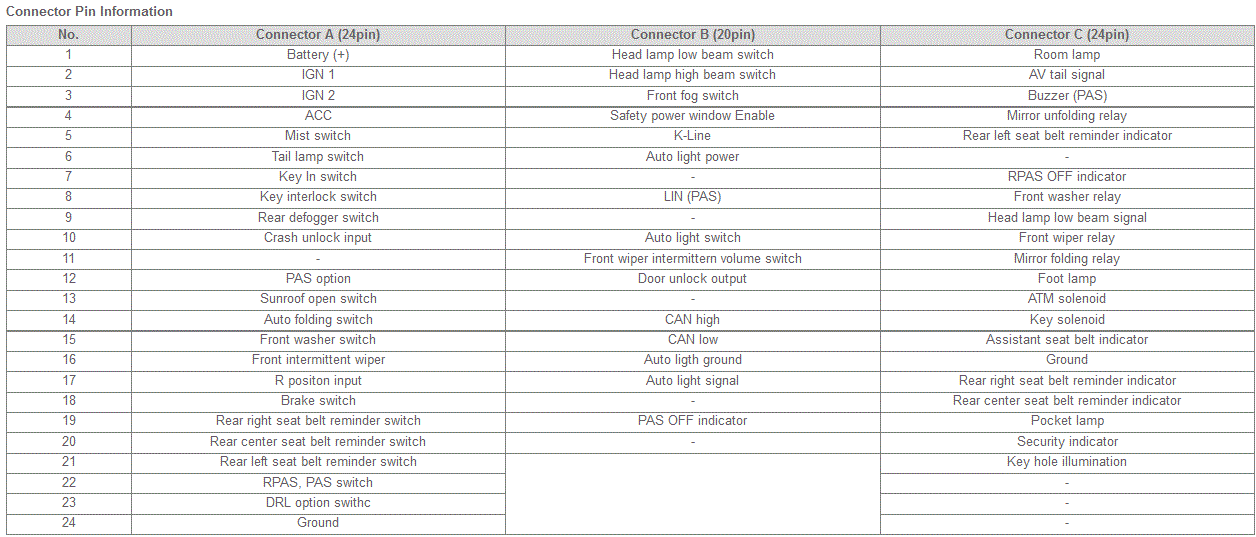

Fig 1: Connector Pin Call-Out

G00549986

Courtesy of KIA MOTORS AMERICA, INC.
