Repair Procedures: Inspection

Disconnect the ignition switch connector (A) and key warning switch connector (B) from the steering column.

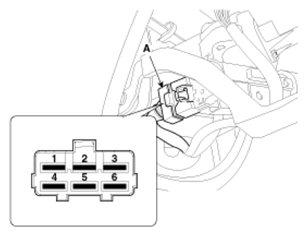

Fig 1: Ignition Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.

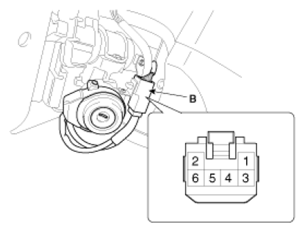

Fig 2: Key Warning Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

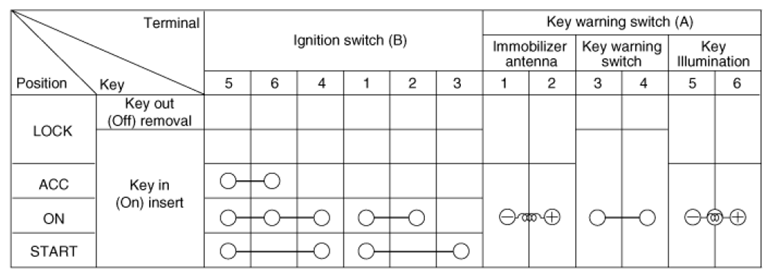

Fig 3: Ignition Switch & Key Warning Switch Connector Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
