Resolver Calibration

WARNING: This page is about a different variant/trim than selected.

This calibration task is required each time the motor or inverter (MCU) is replaced or removed and remounted. This calibration is performed with the GDS.

Conduct Calibration after replacing below components:
- Hybrid Drive Motor
- Hybrid Starter Generator (HSG)
- Motor Control Unit (MCU)

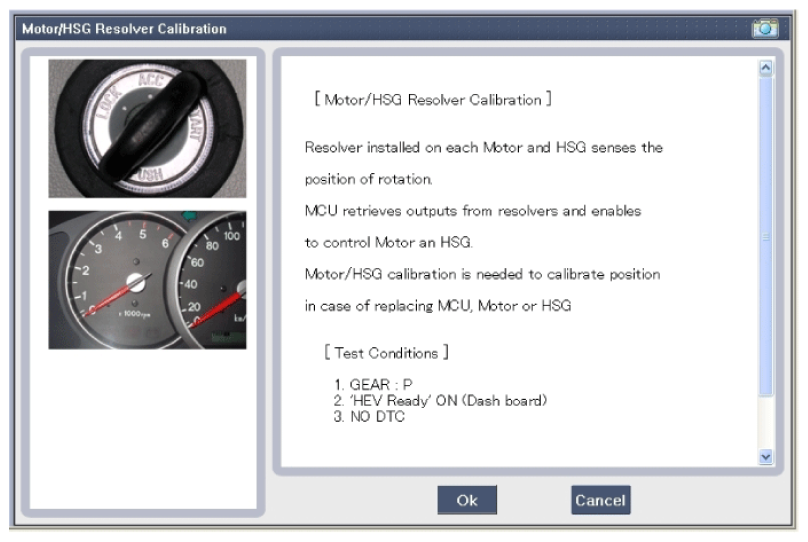

  Fig 1: Screen Display - Motor/HSG Resolver Calibration (Test Condition)
  Courtesy of KIA MOTORS AMERICA, INC.

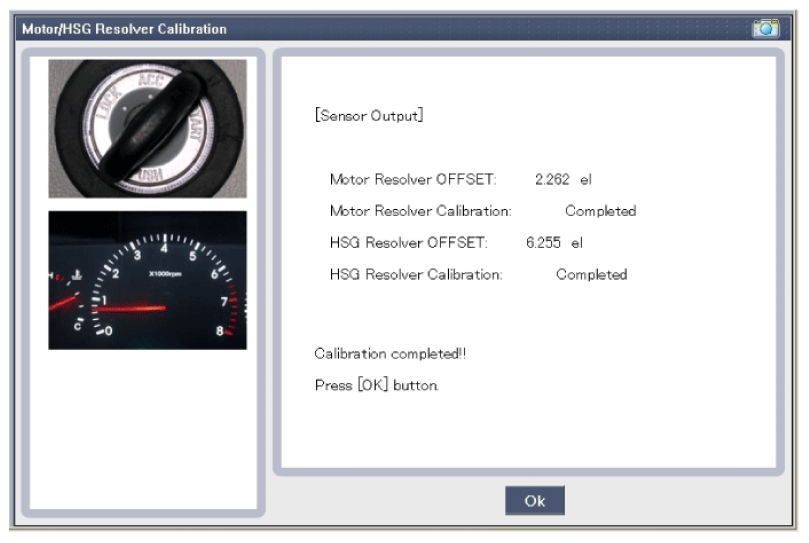

  Fig 2: Screen Display - Motor/HSG Resolver Calibration (Calibration Completed)
  Courtesy of KIA MOTORS AMERICA, INC.
