Charging System

Items Specification
Auxiliary 12V battery Type 54-28GR
Cold cranking amperage [at -18°C(-0.4°F)] 600A
Reserve capacity 113min
Specific gravity [at 20°C (68°F)] 1.28 ± 0.01
CAUTION:
  • COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
  • RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C (80.1°F).
NOTE:

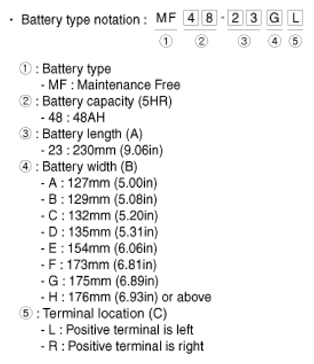

Fig 1: Battery Notations
G08312674Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Battery Length, Width & Terminal Location
G08312675Courtesy of KIA MOTORS AMERICA, INC.
