Repair procedures: Installation

Install in the reverse order of removal.
NOTE:
- The existing valve body cover gasket (A) must be replaced with a new one. (Do not reuse it.)

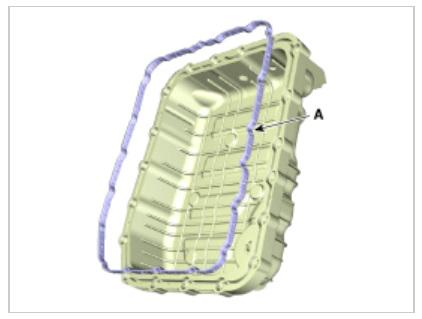

  Fig 1: Valve Body Cover Gasket (A) Must Be Replaced
  Courtesy of KIA MOTORS AMERICA, INC.
- The existing eyebolt washers (8 pcs) must be replaced with new ones. (Do not reuse them.)

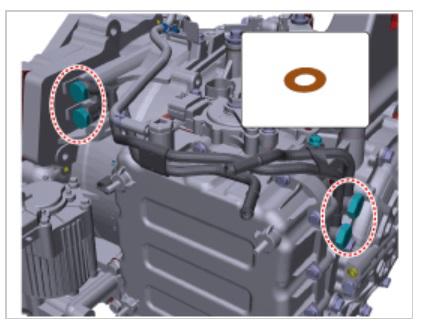

  Fig 2: Eyebolt Washers (8 pcs) Must Be Replaced
  Courtesy of KIA MOTORS AMERICA, INC.
- Install the clamp in the specified direction to prevent interference with surrounding components.
- Perform the procedures below after replacing the valve body.
Perform the procedures below after installing.
1. Refill the automatic transaxle with fluid. (Refer to Fluid )
2. Refill the engine & transaxle system with coolant. (Refer to COOLANT )
3. Refill the hybrid motor cooling system with coolant and then perform the air bleeding using the KDS/GDS. (Refer to Hybrid Motor System - COOLANT )
4. Clear the diagnostic trouble codes (DTC) using the KDS/GDS. Disconnecting the battery negative terminal will not clear the DTCs. Clear DTCs using the KDS/GDS at all times.
5. Reset the automatic transaxle adaptive values using the KDS/GDS.

  Fig 3: KDS/GDS
  Courtesy of KIA MOTORS AMERICA, INC.
6. Perform the TCM adaptive values learning procedure. (Refer to Automatic Transaxle Control System - Adjustment )
7. Confirm that there is no fluid leakage on connections in the engine starting condition.
