Repair procedures: Removal

Shut off the high voltage circuit. (Refer to HIGH VOLTAGE SHUT-OFF PROCEDURE )
Remove the under cover (A).
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 1: Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Drain the coolant of hybrid motor cooling system. (Refer to COOLANT )
Drain the coolant of engine & transaxle cooling system. (Refer to COOLANT )

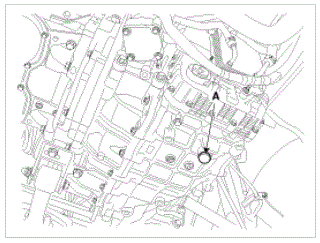

Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Tightening torque :

33.3 ~ 43.1 N.m (3.4 ~ 4.4 kgf.m, 24.6 ~ 31.8 lb-ft)

Fig 2: Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.

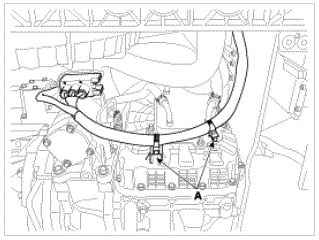

Remove the valve body wire ring fixed clip (A).

Fig 3: Valve Body Wiring Clips
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air duct (A).
Tightening torque:

7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)

Fig 4: Air Duct
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air cleaner assembly.
1. Disconnect the breather hose (A).
2. Disconnect the air intake hose (B) and then remove the air cleaner assembly (C).
  Tightening torque:

  Hose clamp bolt:

  2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)

  Air cleaner assembly bolts:

  7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)

  Fig 5: Breather Hose, Air Intake Hose & Air Cleaner Assembly
  Courtesy of KIA MOTORS AMERICA, INC.
  NOTE:
  - When installing the air intake hose, the plate of the hose clamp must be in line with the stopper of the hose.
  - When installing the air intake hose, the center of the mark of hose must be in line with the throttle body rib.
  Fig 6: Air Intake Hose Installation Position
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the hybrid power control unit (HPCU) assembly. (Refer to REPAIR PROCEDURES )

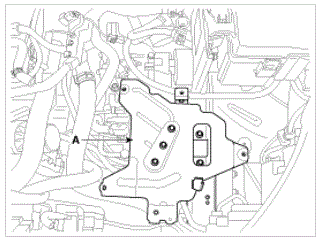

Remove the HPCU tray (A).
Tightening torque:

19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)

Fig 7: HPCU Tray
Courtesy of KIA MOTORS AMERICA, INC.

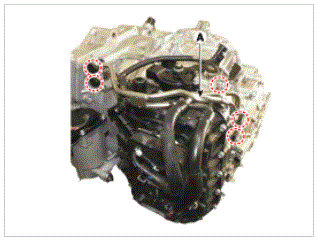

Remove the automatic transaxle oil cooler tube (A).
Tightening torque:

Eye bolt : 41.2 ~ 47.1 N.m (4.2 ~ 4.8 kgf.m, 30.4 ~ 34.7 lb-ft)

Bracket bolt: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 8: Oil Cooler Tube
Courtesy of KIA MOTORS AMERICA, INC.

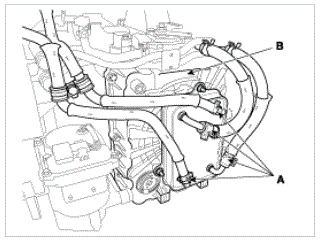

Remove the ATF Warmer hose (A) and then remove the valve body cover (B).
Tightening torque:

11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

Fig 9: ATF Warmer Hose
Courtesy of KIA MOTORS AMERICA, INC.

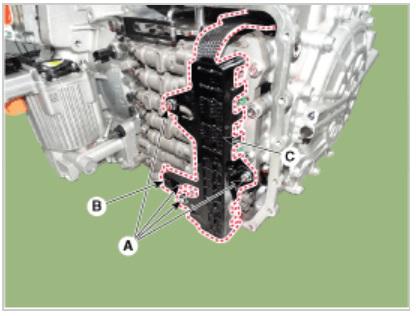

Remove the oil temperature sensor (A) and solenoid valve connector assembly (B).

Fig 10: Oil Temperature Sensor & Solenoid Valve Connector Assembly
Courtesy of KIA MOTORS AMERICA, INC.

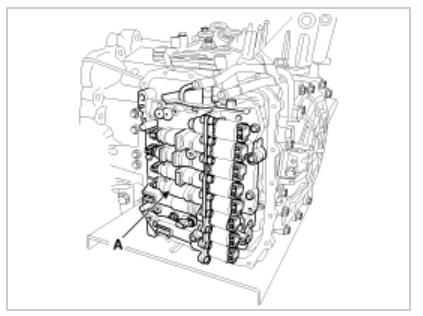

Remove the solenoid valve support bracket (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 11: Valve Body Assembly
Courtesy of KIA MOTORS AMERICA, INC.

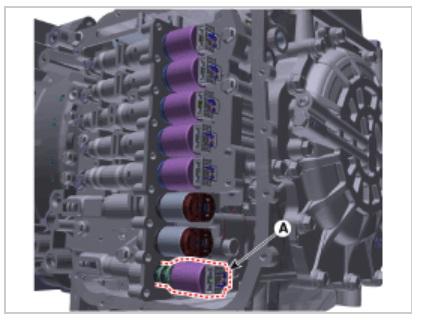

Remove the 26-brake control solenoid valve (A).

Fig 12: Valve Body Mounting Bolt (A)
Courtesy of KIA MOTORS AMERICA, INC.
