Repair procedures: Installation

NOTE:

Make sure that shift lever and manual control lever is "N" range before you install the shift cable.
Insert securely after check the orientation of socket (A) of cable.
Insert the shift cable after checking the direction of projection (B) to prevent wrong assembly.

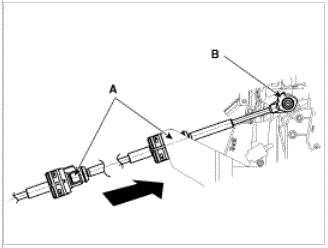

Fig 1: Installing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
