Smart Key Code Saving

WARNING: This page is about a different car, the 2014 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating GDS Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

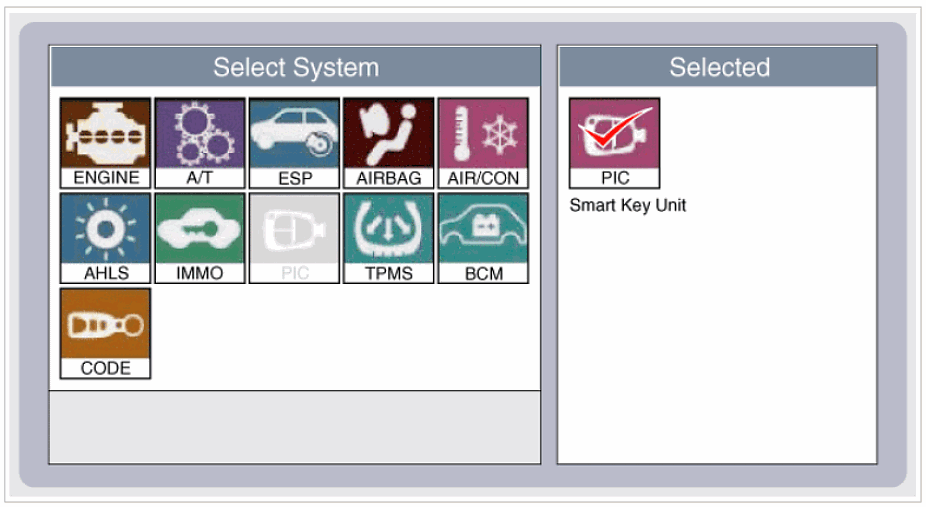

Fig 2: Display - Smart Key Selection Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

Fig 4: Display - Smart Key Code Saving Screen
Courtesy of KIA MOTORS AMERICA, INC.
After having the teaching smart key, push "ENTER" key.
Input the "Pin code" for first key teaching.

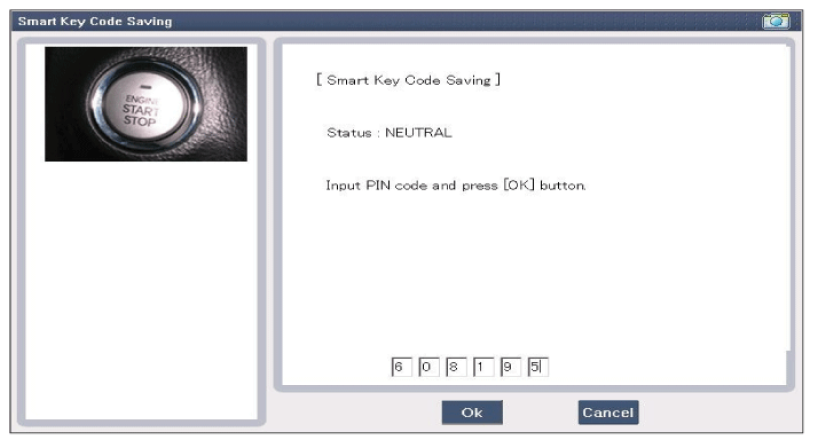

Fig 5: Display - Smart Key Code Saving Screen (With Input Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

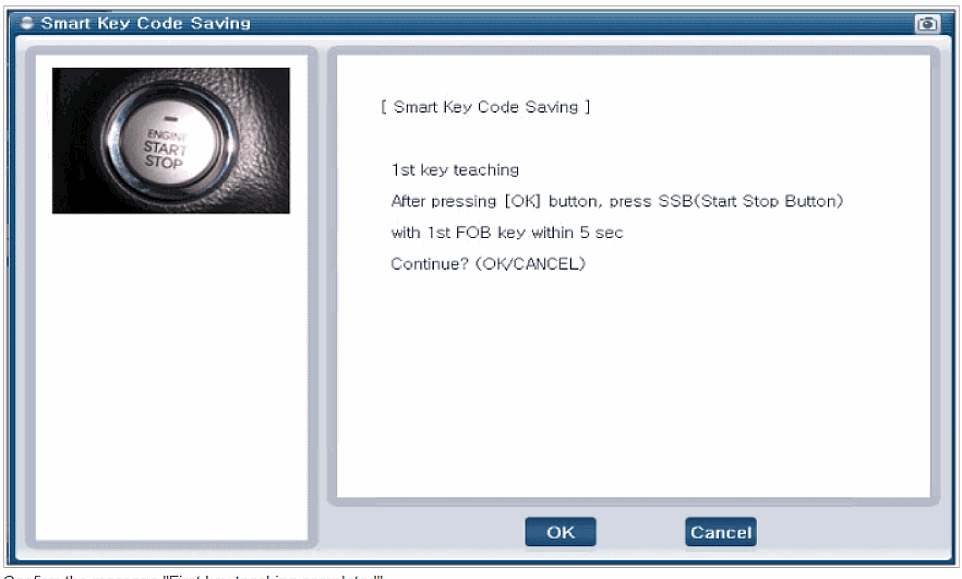

Fig 6: Display - Smart Key Code Saving Confirmation Message
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 7: Display - Smart Key Code Saving Test Confirmation Message
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

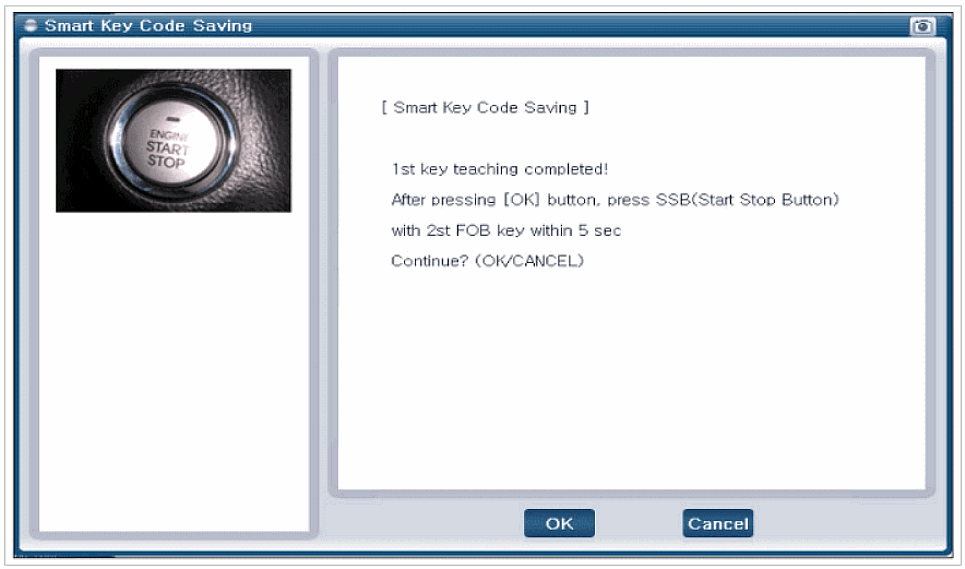

Fig 8: Display - Smart Key Code Saving Test Completed Message (For 1st Key Teaching)
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 9: Display - Smart Key Code Saving Test Completed Message (For 1st Key Teaching)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

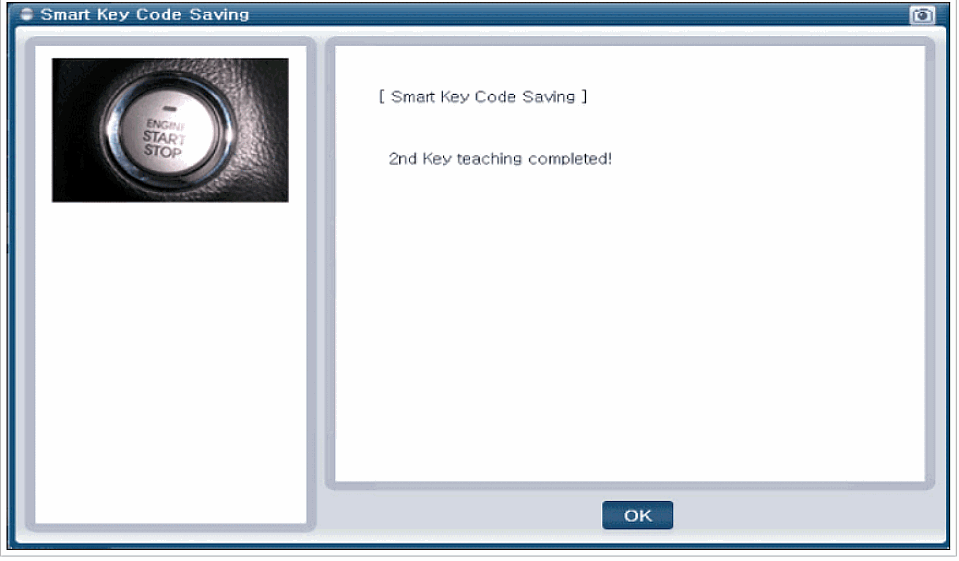

Fig 10: Display - Smart Key Code Saving 2nd Key Teaching Confirmation Message
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be shown as below when key teaching process is completed.

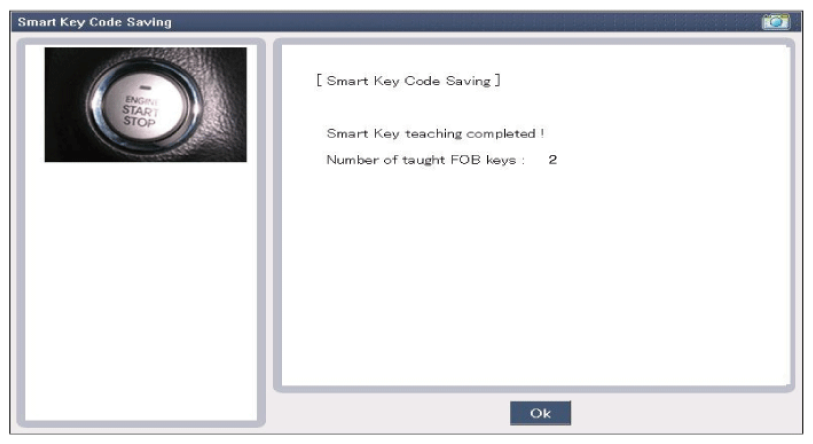

Fig 11: Display - Smart Key Code Saving Test Confirmation Message
Courtesy of KIA MOTORS AMERICA, INC.
