Circuit Diagram: (A/T)

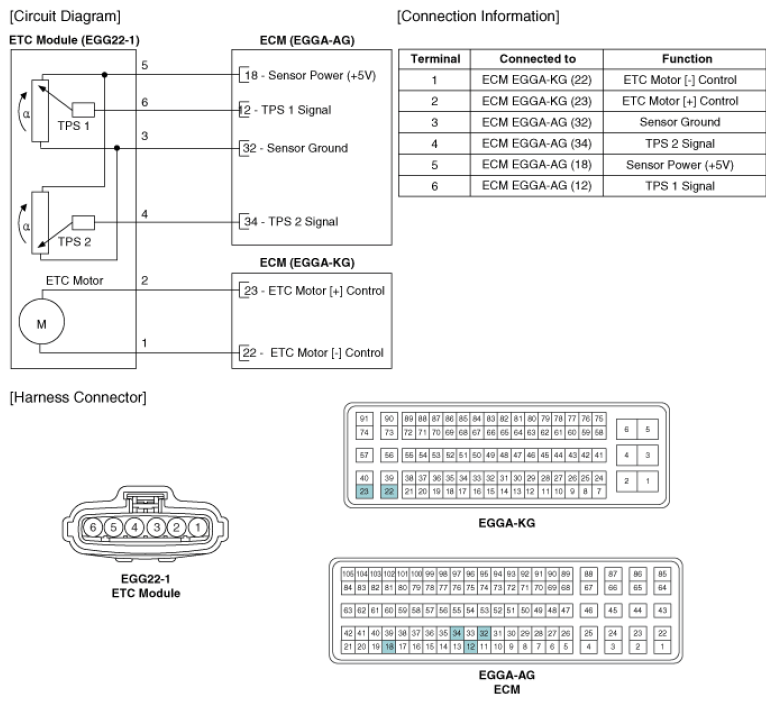

Fig 1: ETC Module - Circuit Diagram (A/T)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
