Repair Procedures: Installation

Installation is the reverse of removal.
NOTE:
- The gasket of the valve body gasket (A) use new one.
- Adding automatic transaxle fluid.
  (Refer to FLUID .

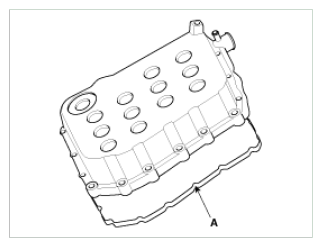

  Fig 1: Identifying Valve Body Gasket
  Courtesy of KIA MOTORS AMERICA, INC.
- Perform TCM learning after replacing the automatic transaxle to prevent slow automatic transaxle response, jerky acceleration and jerky startup.
  (Refer to "Automatic transaxle control system (REPAIR PROCEDURES )" in this group)
