Repair Procedures: Replacement

Disconnect the back up lamp switch connector (A).

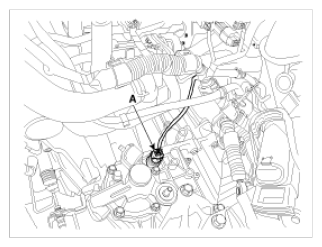

Fig 1: Identifying Back Up Lamp Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the back up lamp switch (A).

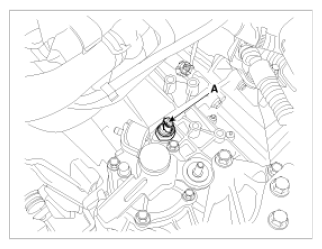

Fig 2: Identifying Back Up Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.
Replace a new one and install the back up lamp switch.
Tightening torque:

29.4 ~ 34.3 N.m (3.0 ~ 3.5 kgf.m, 21.7 ~ 25.3 lb-ft)
