Select / Shift Cable Replacement

Remove the floor Interior console assembly.
(Refer to CONSOLE )

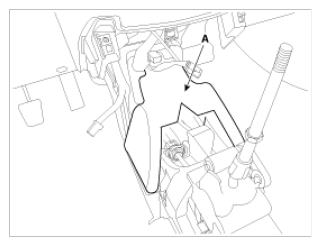

Remove the heater duct (A).

Fig 1: Identifying Heater Duct
Courtesy of KIA MOTORS AMERICA, INC.

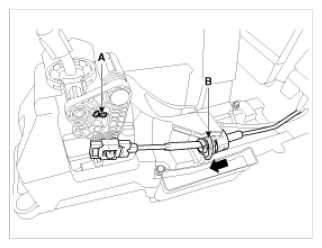

Remove the select cable assembly after removing select cable snap pin (A) and clip (B).

Fig 2: Removing Select Cable Snap Pin And Clip
Courtesy of KIA MOTORS AMERICA, INC.

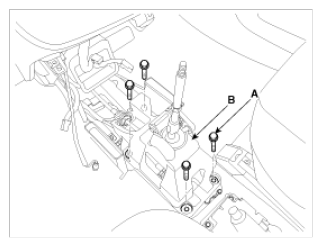

Remove the shift lever assembly (B) by removing the bolts (A-4ea).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 3: Identifying Shift Lever Assembly And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

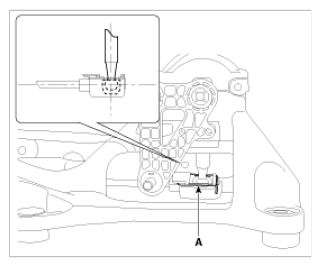

Remove the clip (A) from the shift cable assembly.
CAUTION:
- Set securely.
Fig 4: Identifying Shift Cable Assembly Mounting Clip
Courtesy of KIA MOTORS AMERICA, INC.

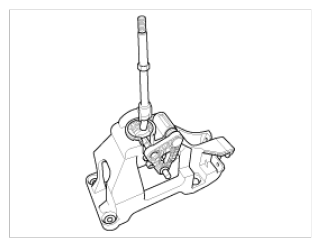

Fig 5: Identifying Shift Cable Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad.
(Refer to "INTERIOR (CRASH PAD) ")
Remove the heater unit.
(Refer to "HEATER (HEATER UNIT) ")

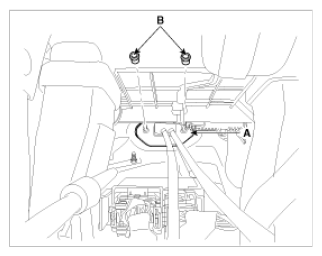

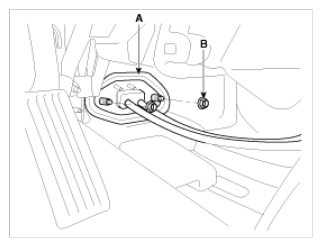

Remove the retainer (A) and nuts (B-2ea).
Tightening torque:

11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

Fig 6: Identifying Retainer And Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Identifying Retainer And Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

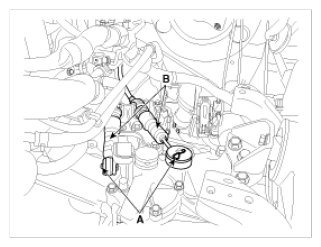

Remove the pins (A).
Remove the cable (B) from the cable bracket at manual transaxle assembly side.
Remove the shift cable and select cable at cabin room.

Fig 8: Identifying Manual Transaxle Assembly Cable And Clip
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
