Shift Lever Assembly Replacement

Remove the floor Interior console assembly.
(Refer to CONSOLE )
Remove the heater duct (A).

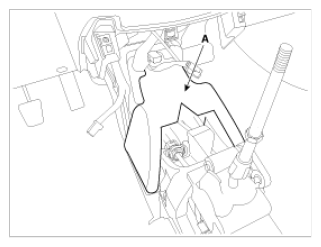

Fig 1: Identifying Heater Duct
Courtesy of KIA MOTORS AMERICA, INC.
Remove the select cable assembly after removing select cable snap pin (A) and clip (B).

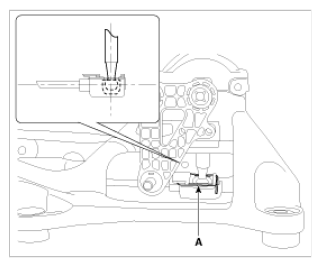

Fig 2: Removing Select Cable Snap Pin And Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift lever assembly (B) by removing the bolts (A-4ea).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

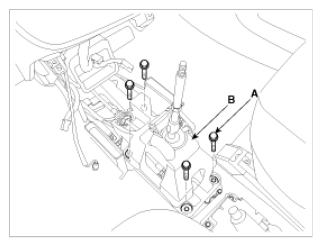

Fig 3: Identifying Shift Lever Assembly And Bolts (A-4ea)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift lever assembly (B) by removing the clip (A).
CAUTION:
- Set securely.

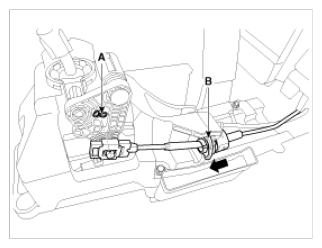

Fig 4: Identifying Shift Lever Assembly Mounting Clip
Courtesy of KIA MOTORS AMERICA, INC.

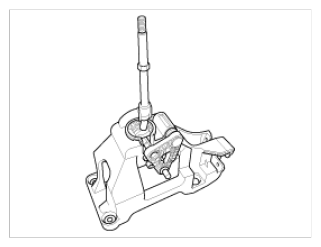

Fig 5: Identifying Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
