Signal Waveform & Data

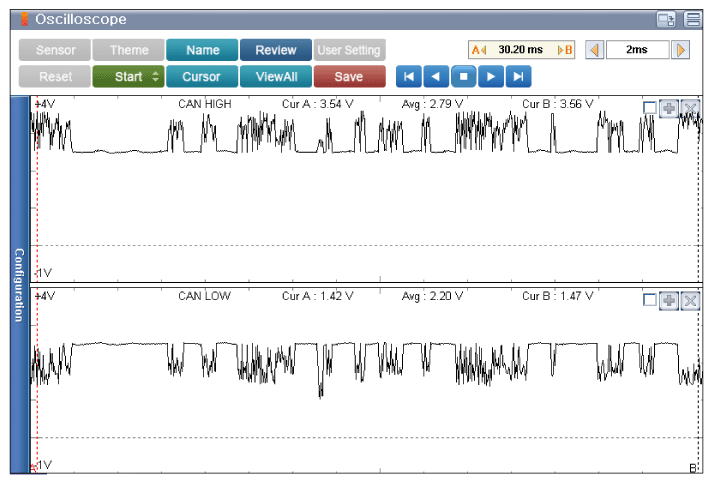

Fig 1: Display - C CAN Low And High Signal Waveform Screen
G10653746Courtesy of KIA MOTORS AMERICA, INC.

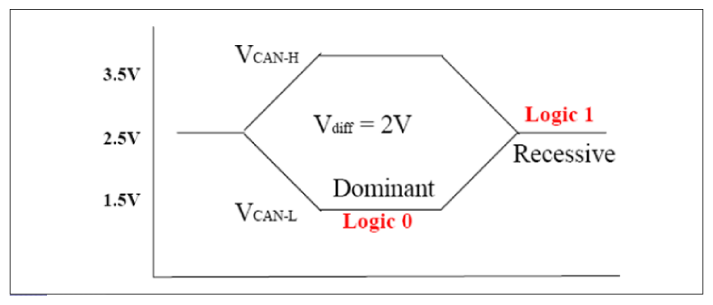

Fig 2: Display - C CAN Bus Voltage Level (High Speed CAN) Screen
G10653747Courtesy of KIA MOTORS AMERICA, INC.
