Monitor GDS status

Connect GDS to Data Link Connector(DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes(DTC) " with GDS.

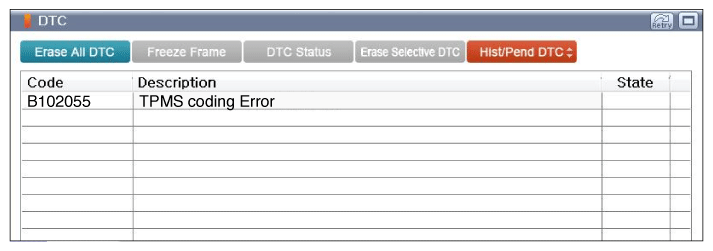

Fig 1: Display - Diagnostic Trouble Code Description Screen
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "MONITOR GDS DATA " procedure.
NO
- Go to "Verification Of Vehicle REPAIR " procedure.
