Components And Components Location: Components

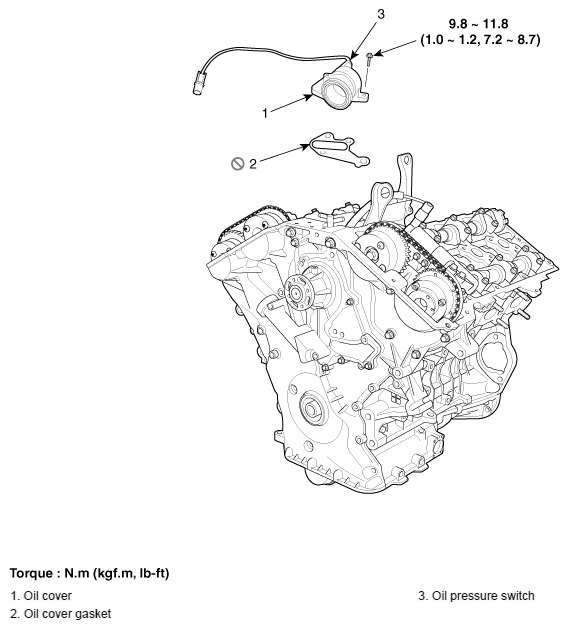

Fig 1: Oil Pressure Switch Related Components With Torque Specification
G10648523Courtesy of KIA MOTORS AMERICA, INC.
