Components Location

[Fuel Tank]

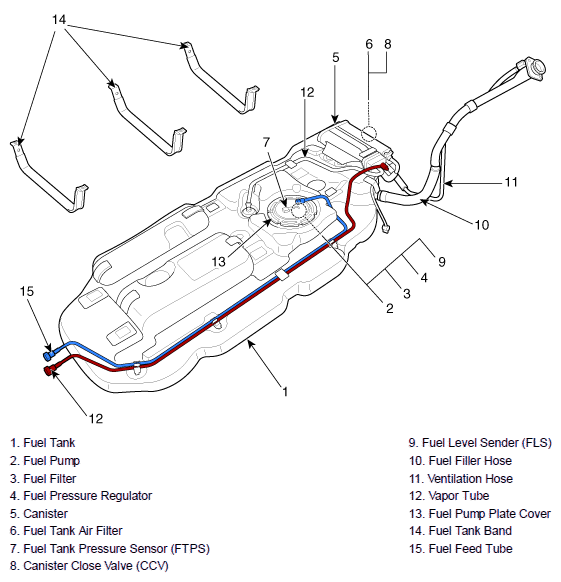

Fig 1: Fuel Tank Components
G10648946Courtesy of KIA MOTORS AMERICA, INC.

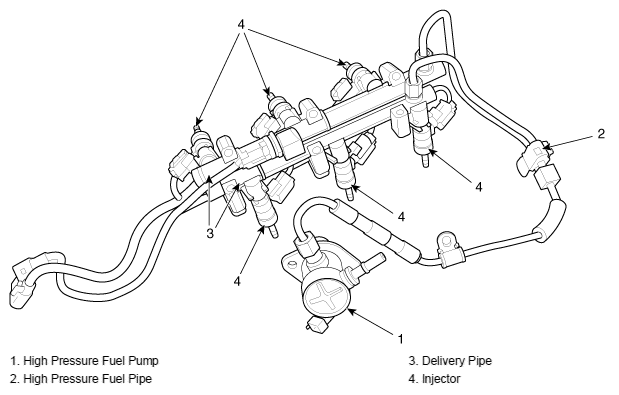

Fig 2: High Pressure Fuel Line Components
G10648947Courtesy of KIA MOTORS AMERICA, INC.
WARNING: When removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, injury may be caused by leakage of high pressure fuel. For this reason, do not attempt any repairing immediately after engine stops.
