Component Inspection

■ Main Relay Actuation Test

1. Connect GDS to Data Link Connector(DLC).
2. IG KEY "ON" & ENG "OFF".
3. Perform "Actuation Test" for "Main Relay".

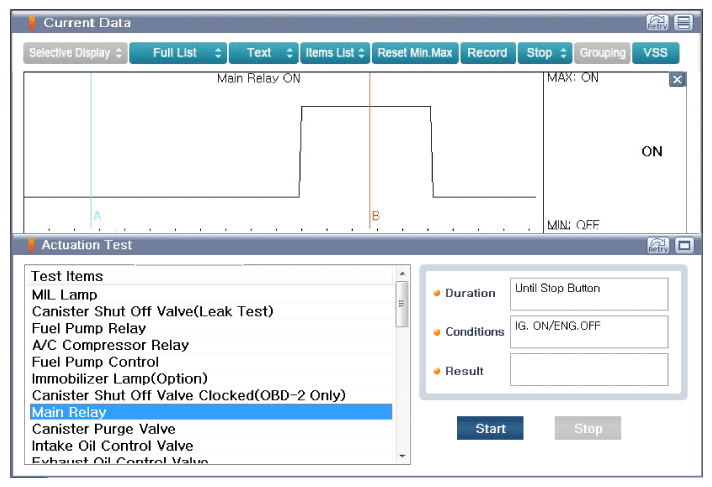

   Fig 1: Screen Display - Main Relay In Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the Main Relay operate properly? (Check variation)

   YES

   • Carefully re-do this troubleshooting guide steps.
   • If the diagnostics have been performed correctly with no failure found, replace the PCM and then go to "Verification Of Vehicle Repair " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If the diagnostics have been performed correctly with no failure found, replace the Main Relay and then go to "Verification Of Vehicle Repair " procedure.
