Terminal And Connector Inspection

Many malfunctions in the electrical system are caused by poor connection. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Has a problem been found?

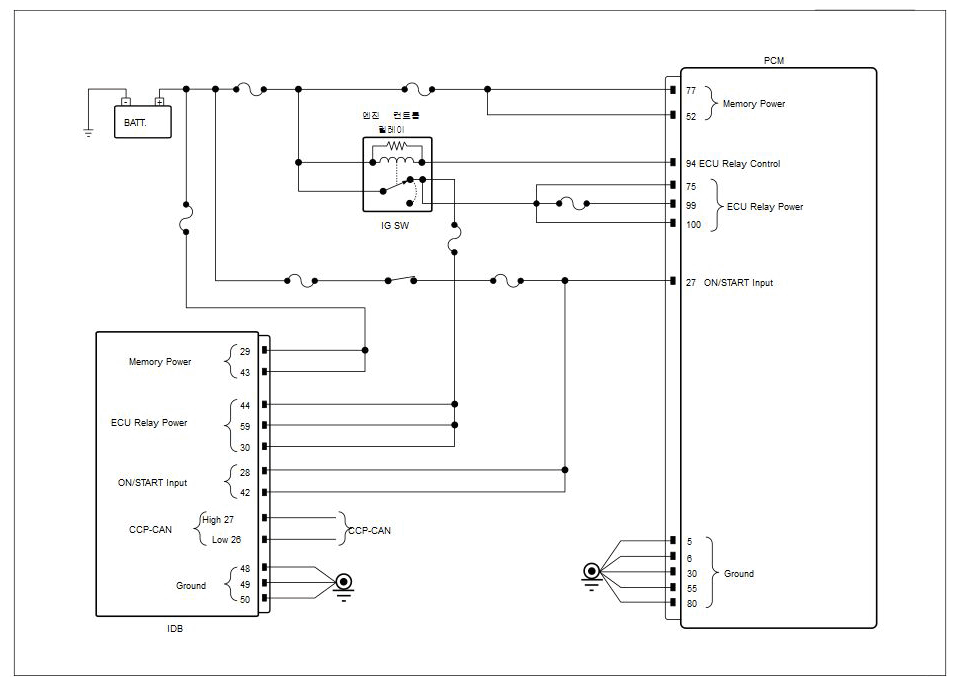

Fig 1: Injector Driver Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

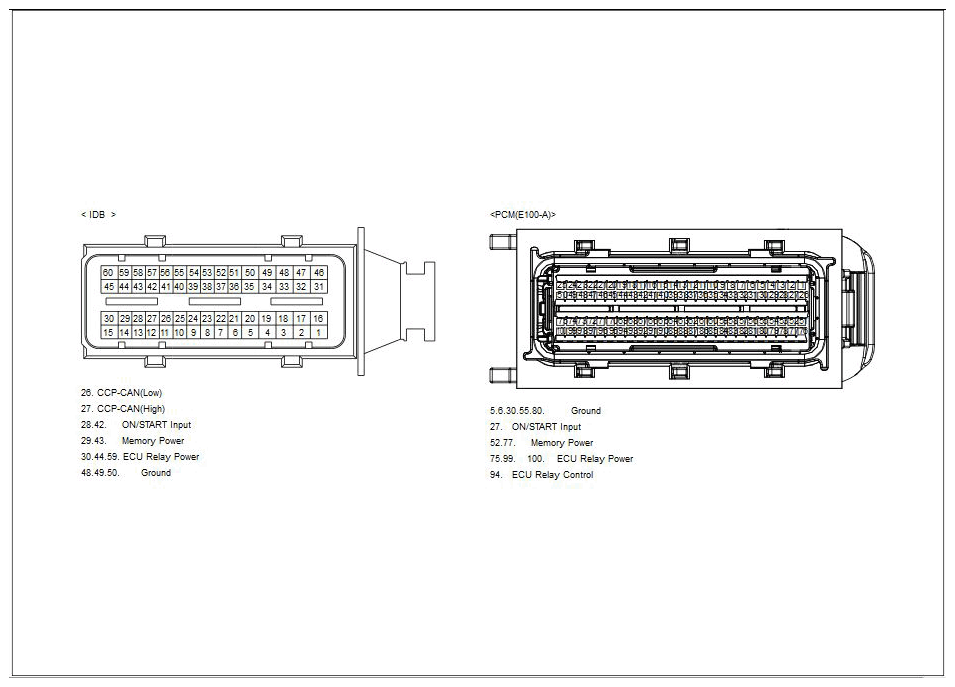

Fig 2: Injector Driver Module Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Repair as necessary and go to "Verification Of Vehicle Repair " procedure.
NO
- Go to "CAN COMMUNICATION LINE SIGNAL WAVEFORM INSPECTION " procedure.
