Component Inspection

■ Check APS

1. Connect GDS to Data Link Cable (DLC).
2. Warm up the engine to normal operating temperature.
3. Check the "Current Data  " about related DTC with GDS.

   Specification:  Refer to Fig 1

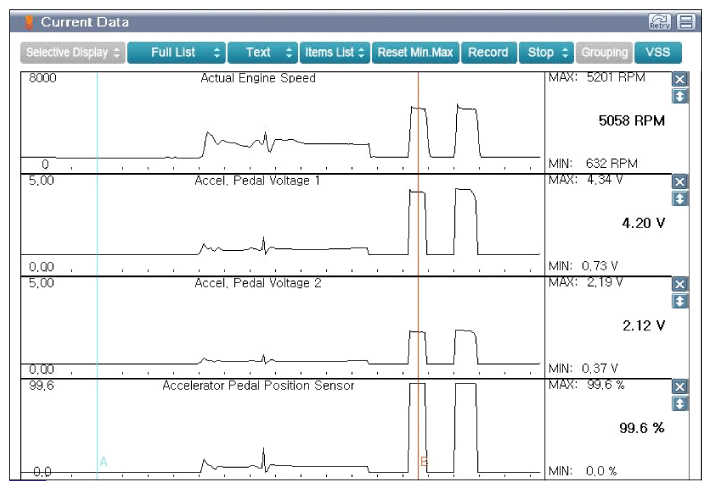

   Fig 1: Screen Display - Signal Waveform In Current Data At Engine Idle (Approx 2000rpm And 5000rpm)

   Courtesy of KIA MOTORS AMERICA, INC.
4. Are the parameters displayed correctly?

   YES

   • Go to "Verification Of Vehicle Repair " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If the diagnostics have been performed correctly with no failure found, replace the APS and then go to "Verification Of Vehicle Repair " procedure.
