Components And Components Location: Components

Fig 1: Timing System Related Components With Torque Specification (1 Of 2)
G10648534Courtesy of KIA MOTORS AMERICA, INC.

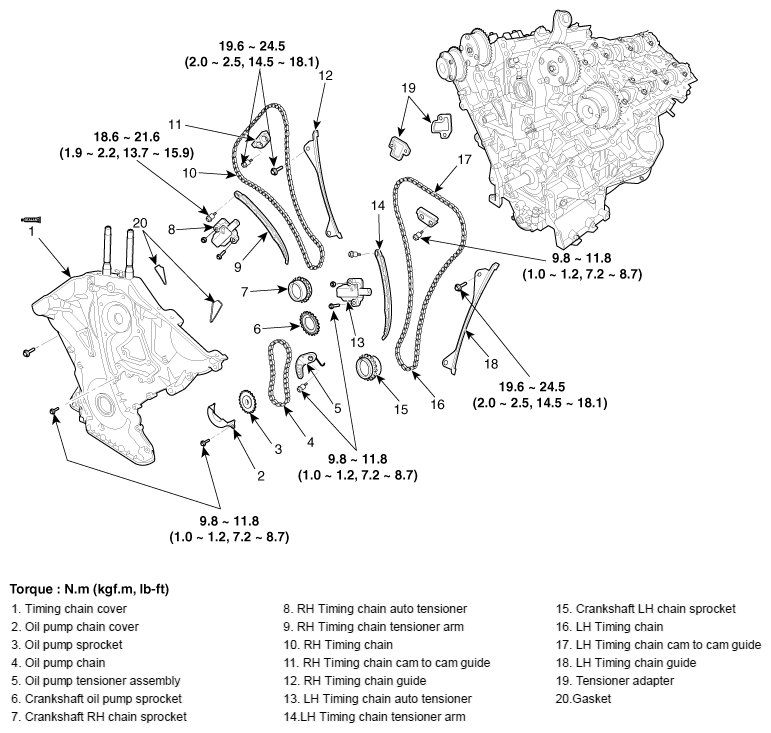

Fig 2: Timing System Related Components With Torque Specification (2 Of 2)
G10648535Courtesy of KIA MOTORS AMERICA, INC.
