Monitor GDS Data

  1. Connect GDS to Data Link Cable (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data" about related DTC with GDS.

    Specification:  Refer to Fig. 1

    Fig.1) Cold Engine Condition

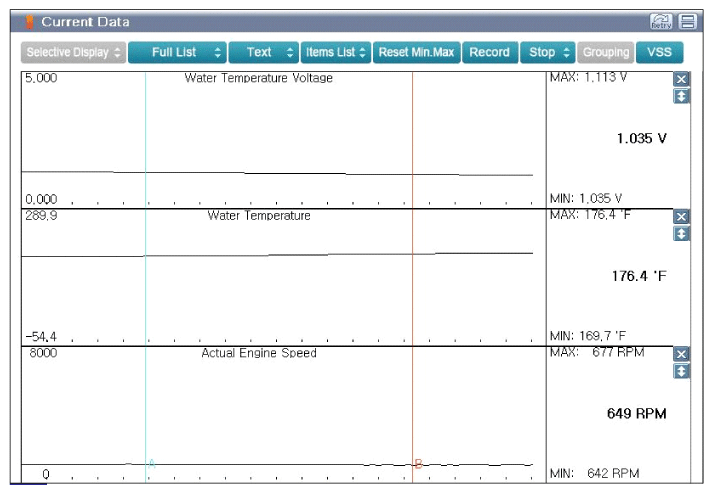

    Fig 1: Screen Display - Signal Waveform In Current Data (Engine At Idle And No Load)
    G10645984Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Vehicle Repair " procedure.
