Components And Components Location: Components

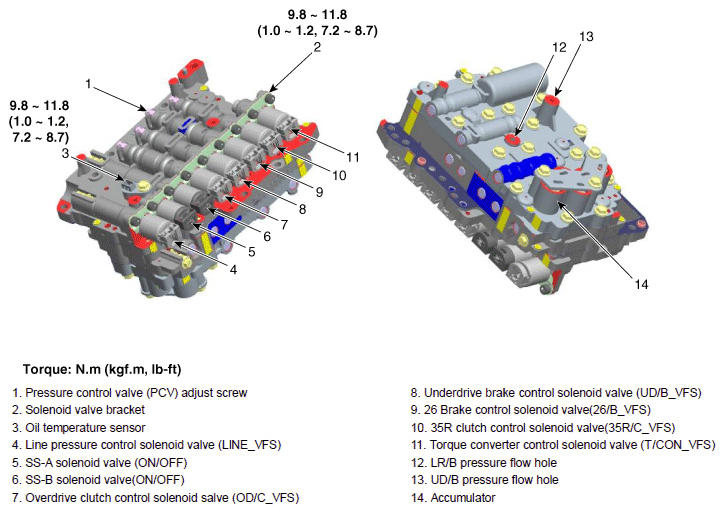

Fig 1: Valve Body Components With Torque Specifications
G10649170Courtesy of KIA MOTORS AMERICA, INC.
