Components And Components Location: Components

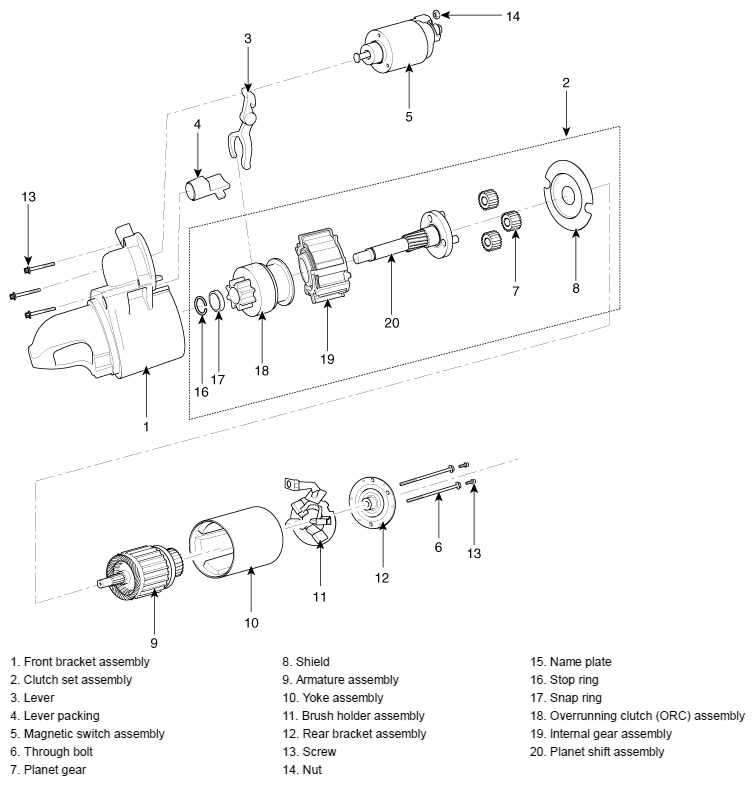

Fig 1: Exploded View Of Starter
G10648725Courtesy of KIA MOTORS AMERICA, INC.
