Repair Procedures: Removal

Place the shift lever into the "N" position.
Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and the battery tray.
(Refer to "BATTERY ")

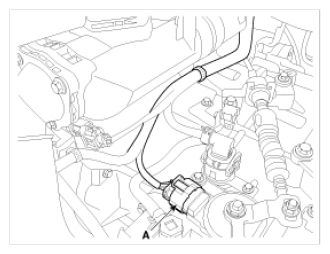

Disconnect the inhibitor switch connector (A).

Fig 1: Inhibitor Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

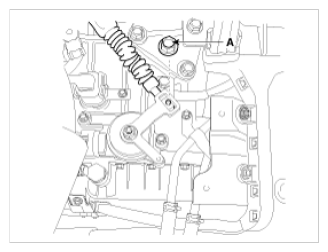

Remove the shift cable mounting nut (A).

Fig 2: Shift Cable Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.

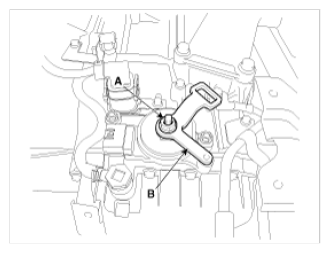

Remove the manual control lever (B) and the washer after removing a nut (A).

Fig 3: Manual Control Lever And Nut
Courtesy of KIA MOTORS AMERICA, INC.

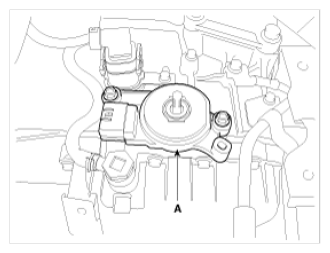

Remove the inhibitor switch (A) after removing the bolts (2ea).

Fig 4: Inhibitor Switch
Courtesy of KIA MOTORS AMERICA, INC.
