Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the coupling assembly.
(Refer to "DIRECT ELECTRO HYDRAULIC ACTUATOR COUPLING ")

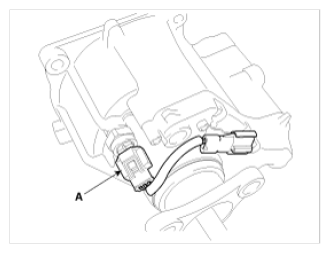

Remove the extension cable (A).

Fig 1: Extension Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the pressure sensor (A) with 24mm socket.
NOTE:
- Keep going horizontal state to prevent leaks during remove the pressure sensor.
Tightening torque: 7.8 ~ 9.8 N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2 lb-ft)

Fig 2: Pressure Sensor
Courtesy of KIA MOTORS AMERICA, INC.
