Components Location

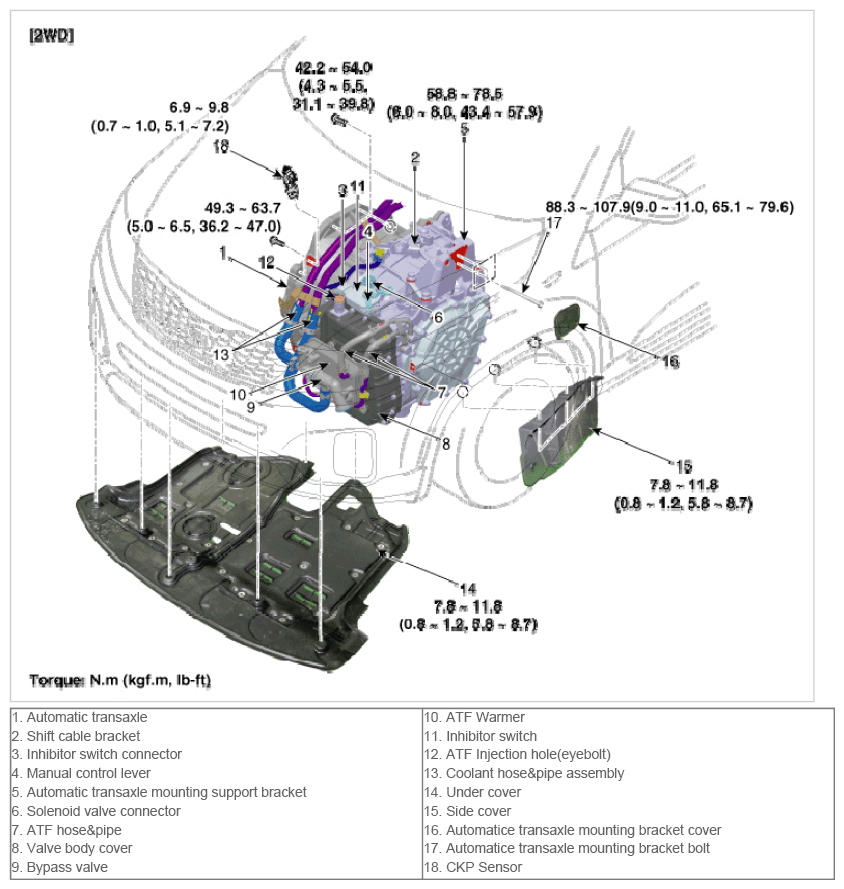

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (2WD)
G09765470Courtesy of KIA MOTORS AMERICA, INC.

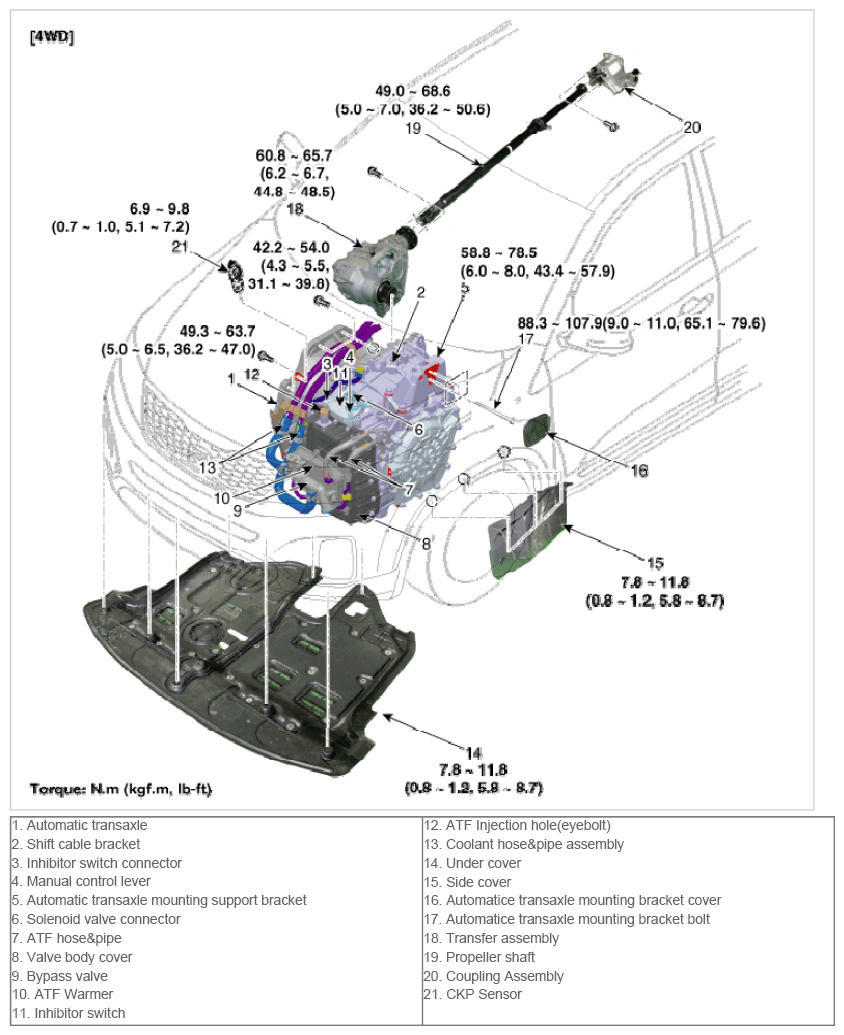

Fig 2: Automatic Transaxle Replacement Components With Torque Specifications (4WD)
G09765471Courtesy of KIA MOTORS AMERICA, INC.
