Repair Procedures: Inspection: [Audio]

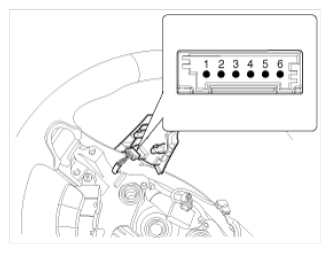

Fig 1: Identifying Audio Connectors

Courtesy of KIA MOTORS AMERICA, INC.

Switch	Connector terminal	Resistance (±5%)	Output voltage
Seek up	2-4	430 Ω	0.4 V ± 0.22
Seek down	2-4	1.1 kΩ	1.0 V ± 0.22
Mode	2-4	2.11 kΩ	1.5 V ± 0.22
Mute	2-4	3.11 kΩ	2.0 V ± 0.22
Volume up	2-4	4.61 kΩ	2.5 V ± 0.22
Volume down	2-4	6.81 kΩ	3.0 V ± 0.22
