Repair Procedures: Inspection

  1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

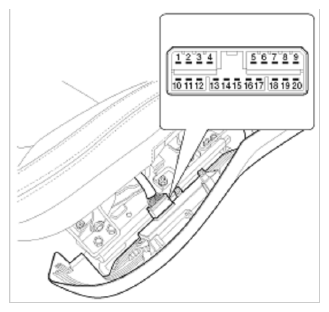

    Fig 1: Power Seat Control Switch Connector End View
    G09778438Courtesy of KIA MOTORS AMERICA, INC.

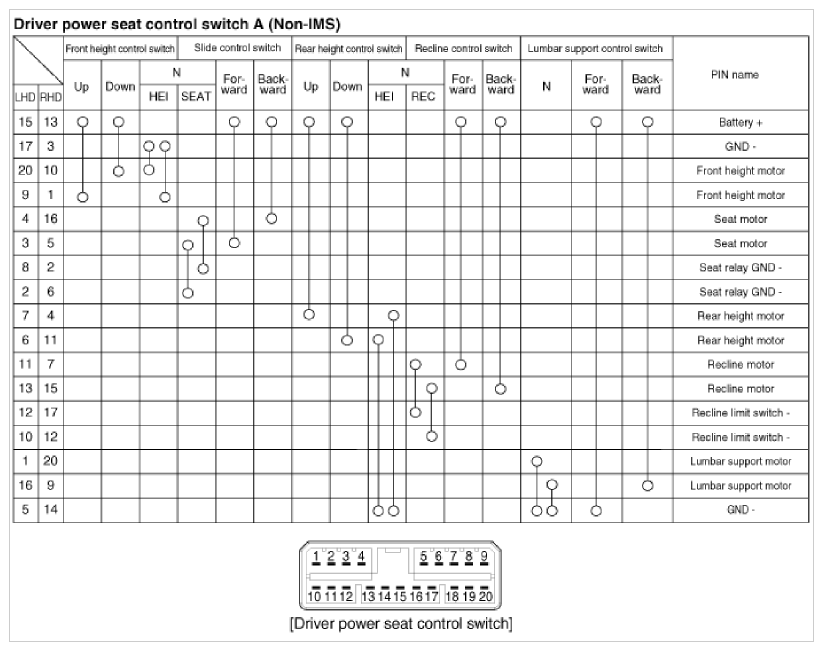

    Fig 2: Power Seat Control Switch Connector Terminals Continuity Chart
    G09778439Courtesy of KIA MOTORS AMERICA, INC.
