Repair Procedures: Replacement

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

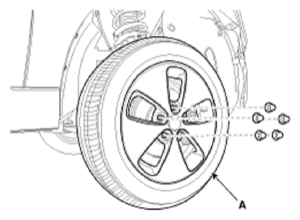

Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Fig 1: Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
Loosen the guide rod bolt (B) and pivot the caliper (A) up out of the way.
Tightening torque:

21.6 ~ 31.4 N.m (2.2 ~ 3.2 kgf.m, 15.9 ~ 23.1 lb-ft)

Fig 2: Caliper And Guide Rod Bolt
Courtesy of KIA MOTORS AMERICA, INC.

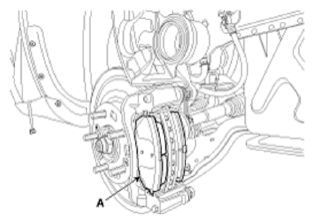

Remove the brake pads (A).

Fig 3: Brake Pads
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake caliper mounting bolts (A), and then place the brake caliper assembly (B) with wire.
Tightening torque:

78.4 ~ 98.0 N.m (8.0 ~ 10.0 kgf.m, 57.8 ~ 72.3 lb-ft)

Fig 4: Brake Caliper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

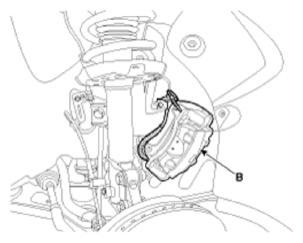

Fig 5: Brake Caliper Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the front brake disc mount screw (B) and then remove the front brake disc (A).
Tightening torque:

4.9 ~ 5.9 N.m (0.5 ~ 0.6 kgf.m, 3.6 ~ 4.3 lb-ft)

Fig 6: Front Brake Disc And Mount Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove driveshaft nut (A) from the front hub under applying the break.
Tightening torque:

240.3 ~ 269.7 N.m (24.5 ~ 27.5 Kgf.m, 177.2 ~ 197.9 lb-ft)

Fig 7: Driveshaft Nut
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- The driveshaft lock nut should be replaced with new ones.
- After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration .

  Fig 8: Installing Driveshaft Lock Nut Using Chisel And Hammer
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the tie rod end ball joint (C) from the knuckle by using the SST (09568-34000).
1. Remove the split pin (A).
2. Remove the castle nut (B).
3. Use the SST (09568-34000).
  Tightening torque:

  23.5 ~ 33.3N.m (2.4 ~ 3.4kgf.m, 19.4 ~ 24.6lb-ft)

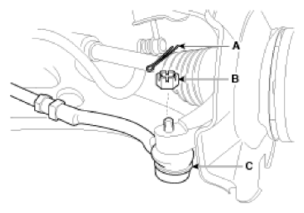

  Fig 9: Split Pin, Castle Nut & Tie Rod End Ball Joint
  Courtesy of KIA MOTORS AMERICA, INC.

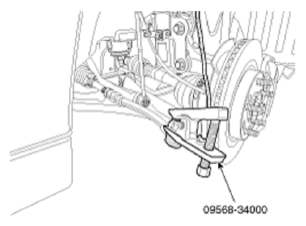

  Fig 10: Removing Tie Rod End Ball Joint Using SST
  Courtesy of KIA MOTORS AMERICA, INC.
  CAUTION:
  - When using SST, be sure not to damage the dust cover of lower arm ball joint.
  - Keep SST tied to the car because there is a risk of injury by dropping the SST during removing the lower arm ball joint.
  - The peripheral parts may be damaged when removing the lower arm ball joint with a general tool such as lever, so be sure to use SST.

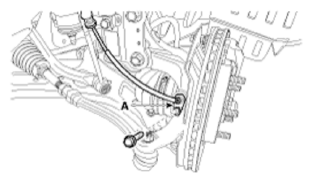

Loosen the mount bolt and then remove the wheel speed sensor (A) from knuckle.
Tightening torque:

6.8 ~ 10.7 N.m (0.7 ~ 1.1 kgf.m, 5.0 ~ 7.9 lb-ft)

Fig 11: Wheel Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.

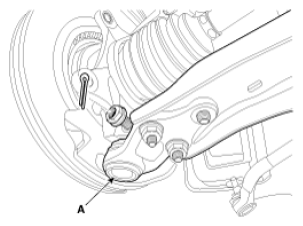

Loosen the bolt & nut and then remove the lower arm (A).
Tightening torque:

58.8 ~ 70.6 N.m (6.0 ~ 7.2 kgf.m, 43.4 ~ 52.1 lb-ft)

Fig 12: Lower Arm
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the driveshaft (A) from the front hub assembly.

Fig 13: Driveshaft
Courtesy of KIA MOTORS AMERICA, INC.

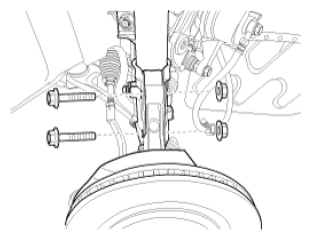

Loosen the strut mounting bolts (A) and then remove the knuckle assembly (B).
Tightening torque:

137.3 ~ 156.9 N.m (14.0 ~ 16.0 kgf.m, 101.3 ~ 115.7 lb-ft)

Fig 14: Knuckle Assembly & Bolts
Courtesy of KIA MOTORS AMERICA, INC.
