[Register Sensor initialization]

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

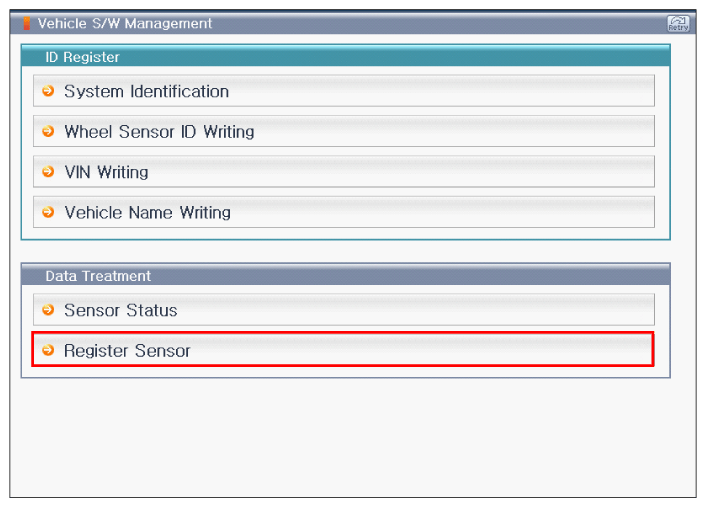

Fig 1: Screen Display - Register Sensor (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

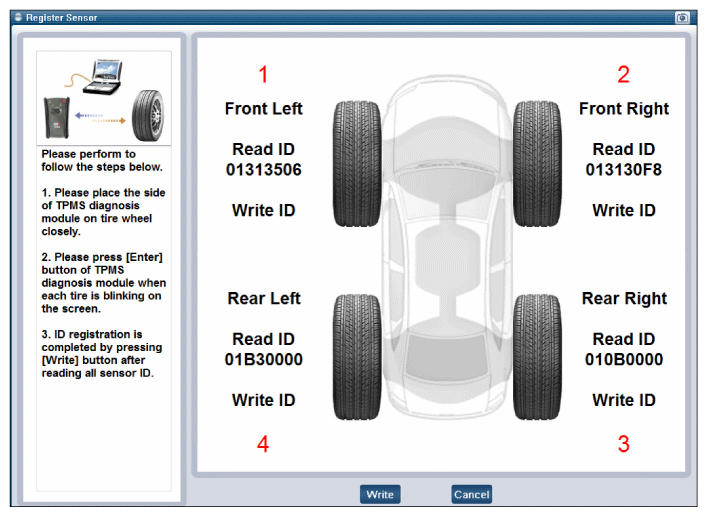

Fig 2: Screen Display - Register Sensor (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

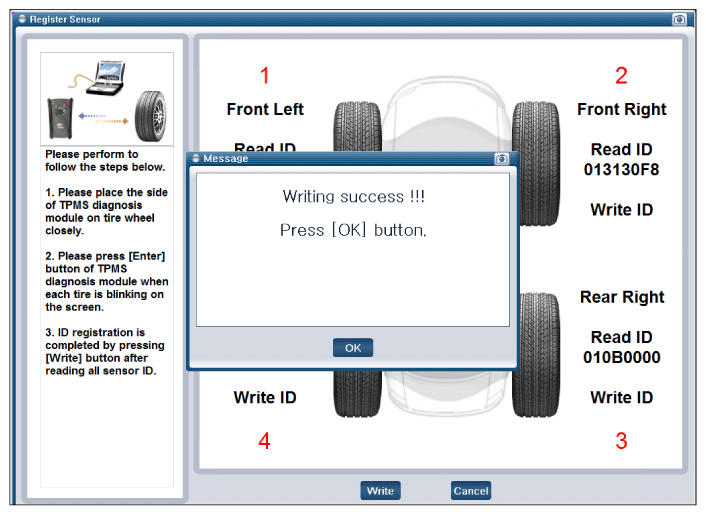

Fig 3: Screen Display - Register Sensor (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Write ID Read ID and be sure to check are the same.
After registering successfully sensor "Sensor Wireless Information" by the execution determines whether the sensor is working properly.
