[Sensor Status initialization]

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

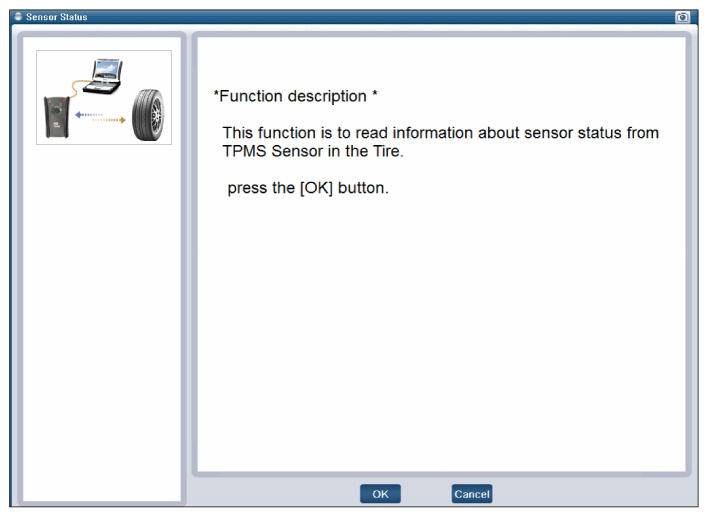

Fig 1: Screen Display - Sensor Status (1 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

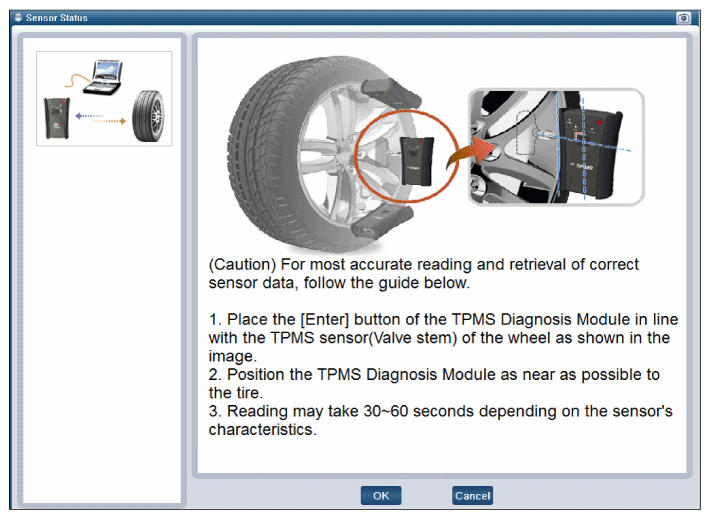

Fig 2: Screen Display - Sensor Status (2 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

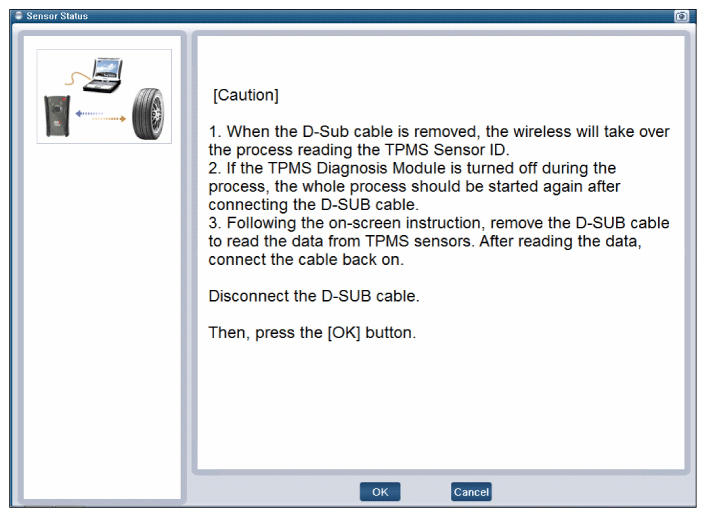

Fig 3: Screen Display - Sensor Status (3 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

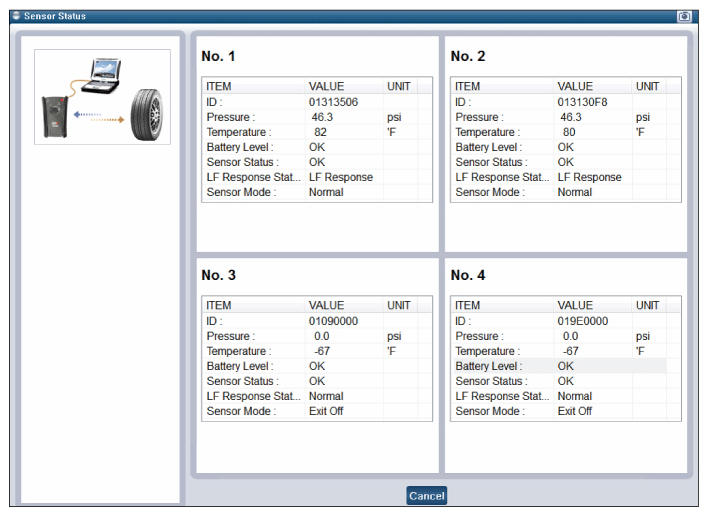

Fig 4: Screen Display - Sensor Status (4 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Screen Display - Sensor Status (5 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

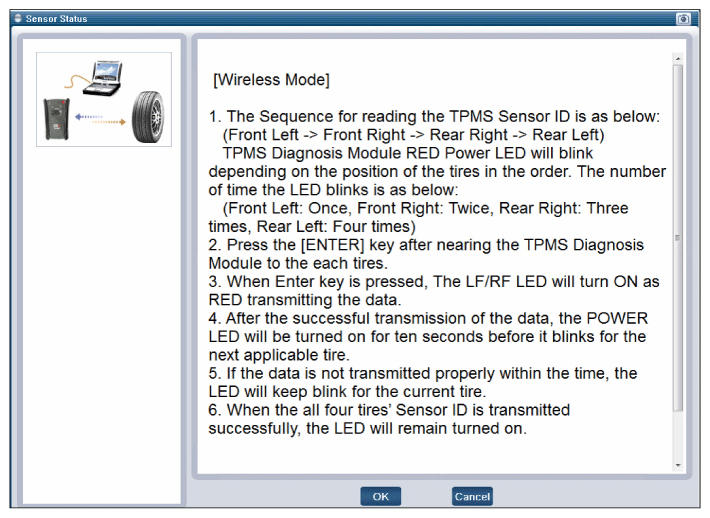

Fig 6: Screen Display - Sensor Status (6 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.
