Repair Procedures: Replacement
WARNING: This page is about a different car, the 2016 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Put on gloves to protect your hands.
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat cushion assembly.
(Refer to "REAR SEAT ASSEMBLY .")
- Remove the rear seat back assembly.
(Refer to "REAR SEAT ASSEMBLY .")
- Remove the rear door scuff trim.
(Refer to "DOOR SCUFF TRIM .")

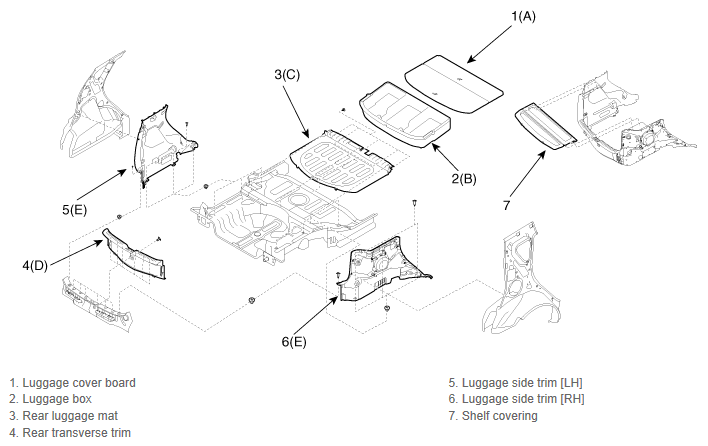

- Remove the luggage cover board (A).
- Remove the luggage box (B).
- Remove the rear luggage mat (C).
- Using a screwdriver or remover, remove the rear transverse trim (D).
- After loosening the mounting screws, remove the luggage side trim (E).
- Install in the reverse order of removal.
