Repair Procedures: Replacement

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

Fig 1: Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
Remove the stabilizer link (A) loosening the nut.
Tightening torque:

98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3~86.8lb-ft)

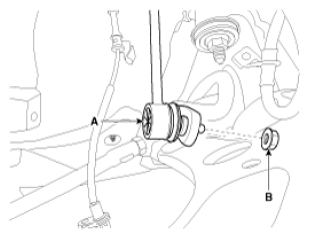

Fig 2: Stabilizer Link & Nut (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

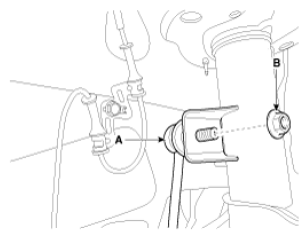

Fig 3: Stabilizer Link & Nut (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
