Components And Components Location: Components

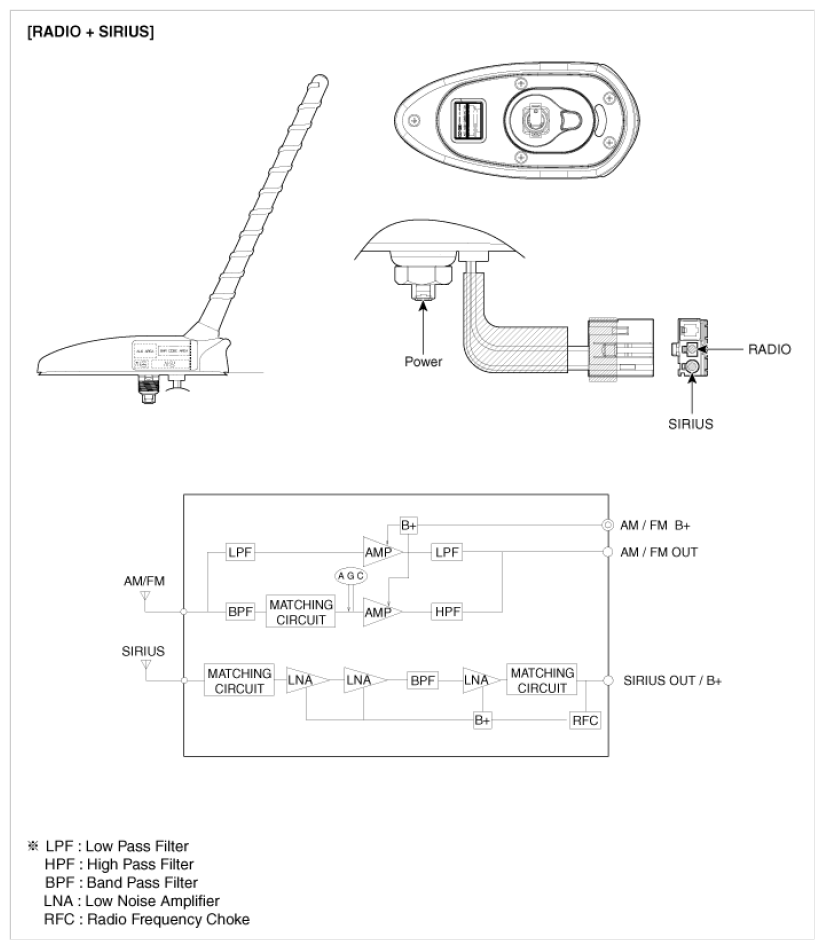

Fig 1: Identifying Antenna Components (1 Of 2)
G09782299Courtesy of KIA MOTORS AMERICA, INC.

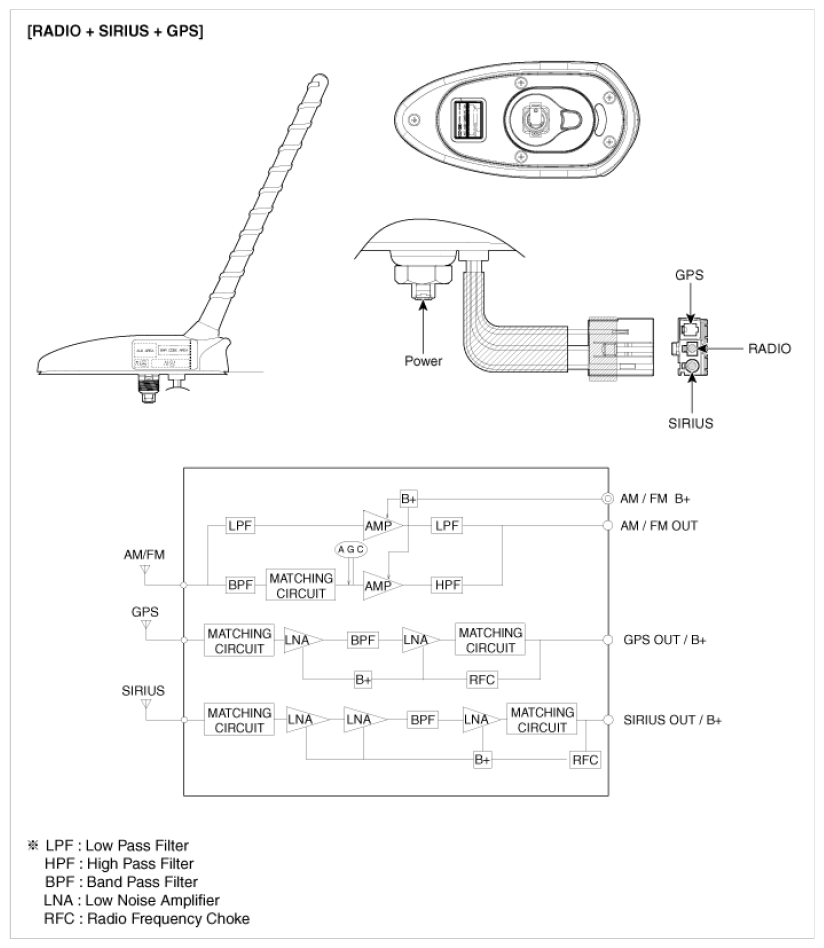

Fig 2: Identifying Antenna Components (2 Of 2)
G09782300Courtesy of KIA MOTORS AMERICA, INC.
