Components And Components Location: Components

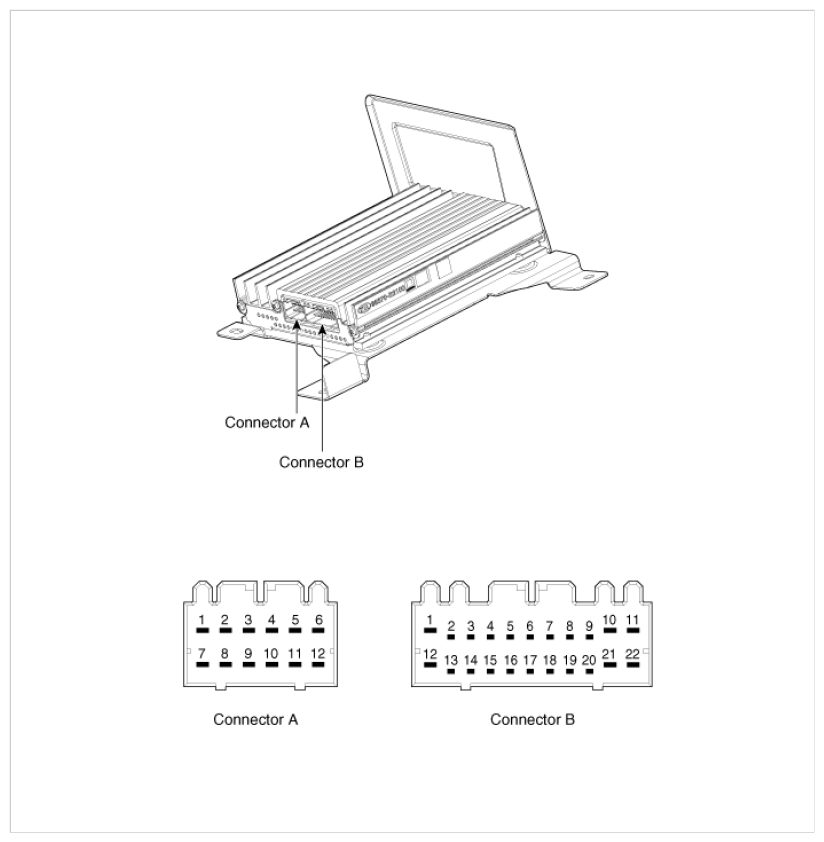

CONNECTOR PIN REFERENCE
| No. | Connector A (12Pin) | Connector B (22Pin) |
|---|---|---|
| 1 | Front door left (+) | Front center (+) |
| 2 | Front door right (+) | - |
| 3 | Side (Rear) door left (+) | - |
| 4 | Side (Rear) door right (+) | - |
| 5 | Subwoofer 2 (+) | Navigation (+) |
| 6 | Subwoofer 1 (+) | ACC |
| 7 | Front door left (-) | CAN (-) |
| 8 | Front door right (-) | CAN (+) |
| 9 | Side (Rear) door left (-) | - |
| 10 | Side (Rear) door right (-) | B (+) |
| 11 | Subwoofer 2 (-) | B (+) |
| 12 | Subwoofer 1 (-) | Front center (-) |
| 13 | - | |
| 14 | - | |
| 15 | ||
| 16 | Navigation (-) | |
| 17 | SPDIF GND | |
| 18 | SPDIF (-) | |
| 19 | SPDIF (+) | |
| 20 | - | |
| 21 | GND | |
| 22 | GND |
