Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Data Link Connector Location
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

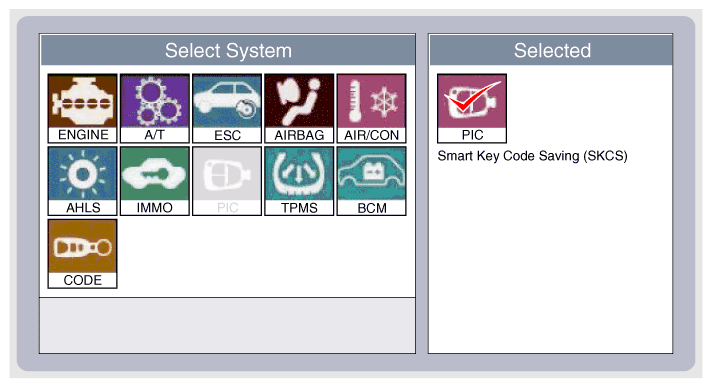

Fig 2: GDS Display Screen - Smart Key Code Saving (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: GDS Display Screen - Smart Key Code Saving (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

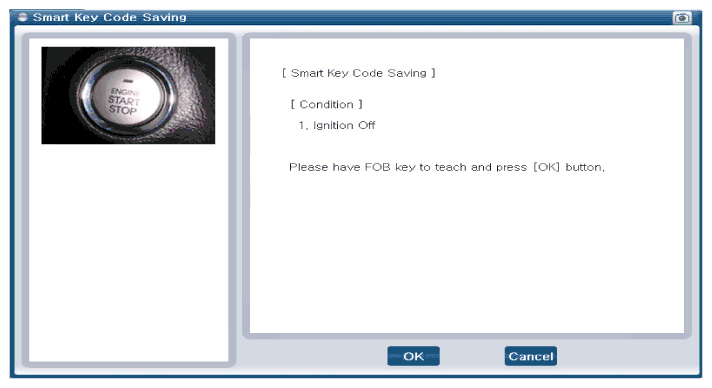

After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

Fig 4: Smart Key Code Saving GDS Screen
Courtesy of KIA MOTORS AMERICA, INC.
After having the teaching smart key, push "ENTER" key.
Input the "Pin code" for first key teaching.

Fig 5: Smart Key Code Saving GDS Screen Pin Code Input (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Smart Key Code Saving GDS Screen Pin Code Input (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 7: Smart Key Code Saving GDS Screen
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

Fig 8: GDS Display Screen - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 9: Smart Key Code Saving GDS Screen
Courtesy of KIA MOTORS AMERICA, INC.

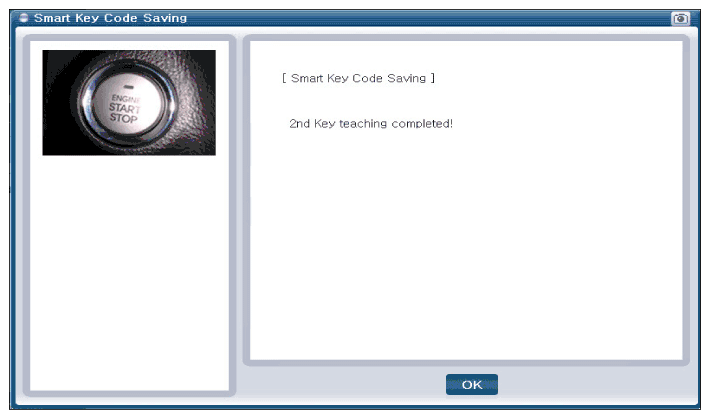

Confirm the message "Second key teaching completed".

Fig 10: GDS Display Screen - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be shown as below when key teaching process is completed.

Fig 11: Smart Key Code Saving GDS Screen
Courtesy of KIA MOTORS AMERICA, INC.
