Variant Coding

Connect the GDS to the data link connector.
Turn the ignition "ON".
Select vehicle name and system.
Select the variant coding.

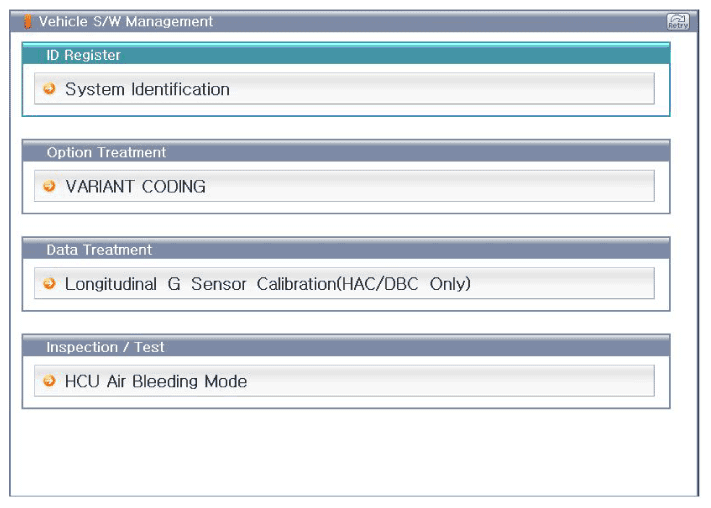

Fig 1: Screen Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.
Perform variant coding according to the instructions on the screen.

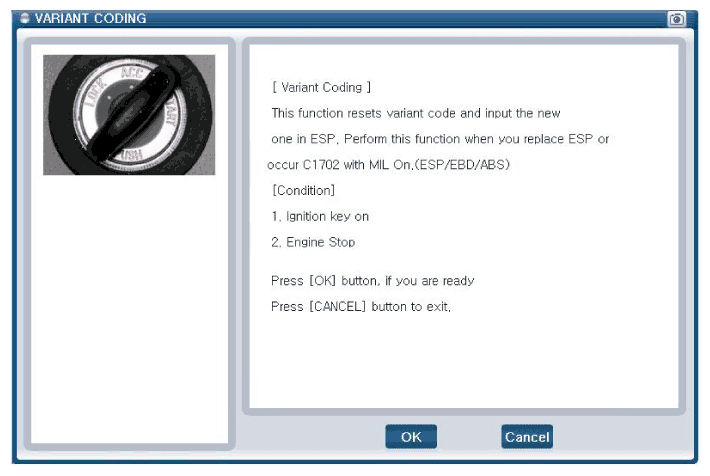

Fig 2: Screen Display - Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.

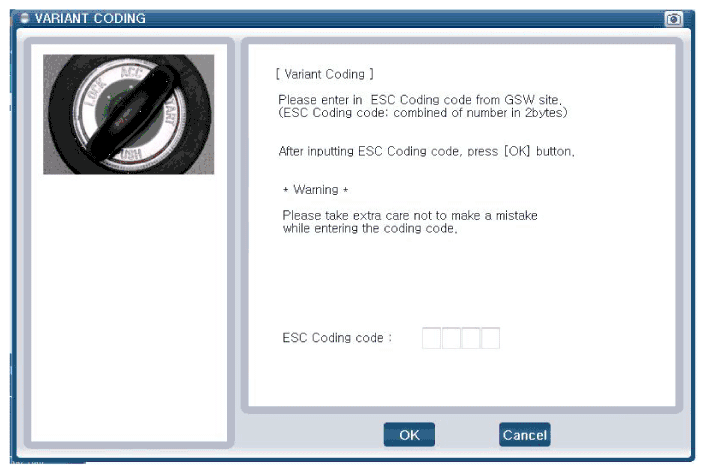

Fig 3: Screen Display - ESC Coding Code
Courtesy of KIA MOTORS AMERICA, INC.
Ignition "OFF" and then ignition "ON".
The variant coding is completed.
