Components and Components Location: Components

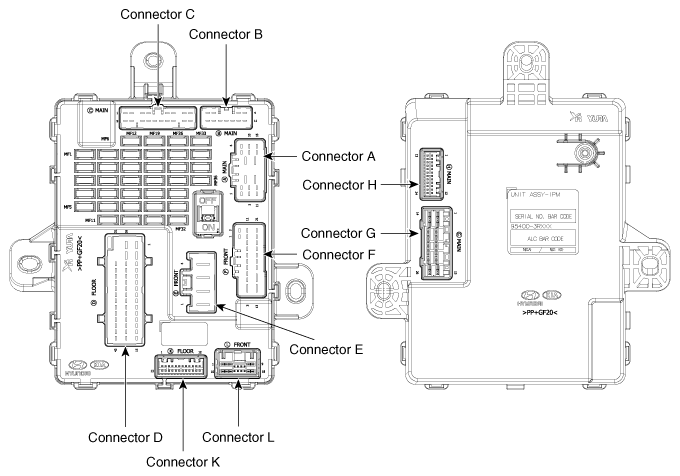

Fig 1: BCM (Body Control Module) Components Location

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: BCM (Body Control Module) Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

CONNECTOR PIN SPECIFICATION

No.	Connector G	Connector H	Connector K	Connector L
1	Power ground	Front fog lamp switch	Room lamp	Front left turn signal lamp
2	Washer switch	PAS OFF switch	Rear power window relay power	LED DRL - LH
3	Security indicator	Defroster	Rear right power window up relay	LED DRL - RH
4	Assist seat belt switch	Auto light switch	Rear left power window up relay	Rain sensor option
5	Head lamp washer	Tail switch	Driver door open switch	-
6	Wiper intermittent volume	Left turn signal lamp switch	Assist door open switch	-
7	Body load	K Line	Driver seat belt switch	-
8	PAS OFF indicator	PAS/RPAS option	Rear right door unlock	-
9	C CAN low	MTS data	Rear left door unlock	External buzzer
10	C CAN high	BCM data	LIN	Front right turn signal lamp
11	Auto light ground	Key insert signal	-	Wiper low relay
12	AV tail	Rear fog lamp switch	Rear left turn signal lamp	ATM solenoid
13	Signal ground	B CAN low	Foot lamp	Hood switch
14	Kel solenoid	B CAN high	Trunk room lamp	-
15	Key hole illumination	Head lamp high switch	Rear right power window down relay	-
16	-	Wiper intermittent switch	Rear left power window down relay	HID option
17	-	Wiper mist switch	P position	Wiper high relay
18	Rear fog lamp relay	Right turn signal lamp switch	Rear right door open switch	Wiper stop status
19	Trunk release relay	Parking brake switch	Rear left door open switch
20	Auto light power	Side airbag option	Trunk open status
21	Front fog lamp LED option	Passing switch	External trunk switch
22	Stop lamp switch	Head lamp low switch	Rain sensor input
23	Auto light sensor	Hazard switch	Rain sensor output
24	Burglar alarm horn relay	-	Rear right turn signal lamp
25	-
26	Assist seat belt indicator
