Components (1)

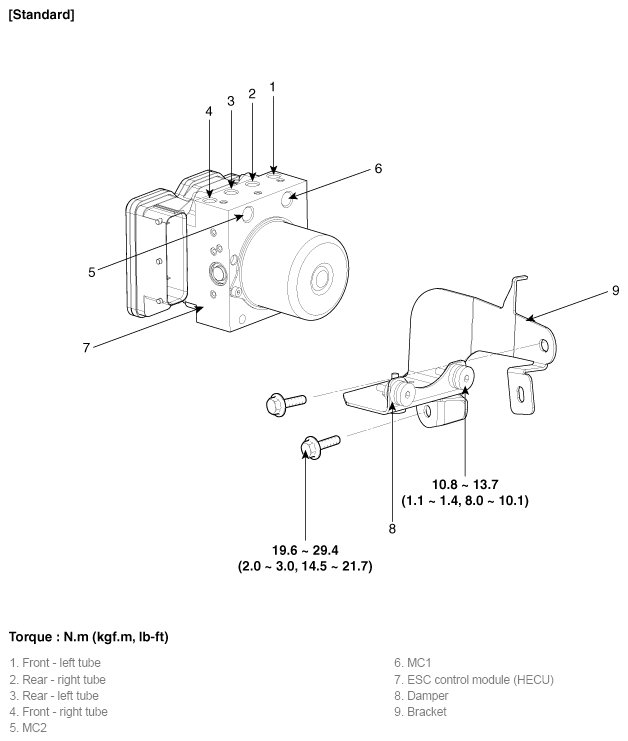

Fig 1: Locating ESC Control Module Components With Torque Specification (Standard)
G11784965Courtesy of KIA MOTORS AMERICA, INC.
