Components (2)

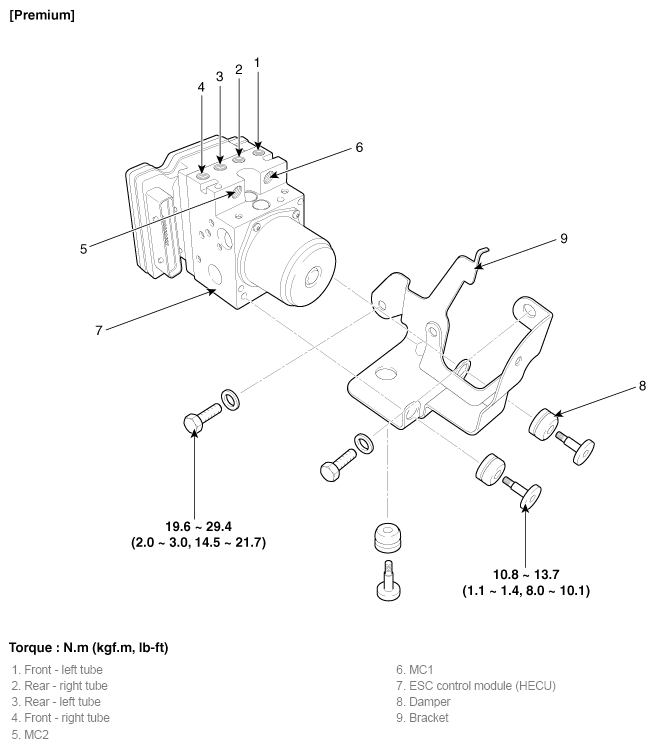

Fig 1: Locating ESC Control Module Components With Torque Specification (Premium)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
