Components and Components Location: Components

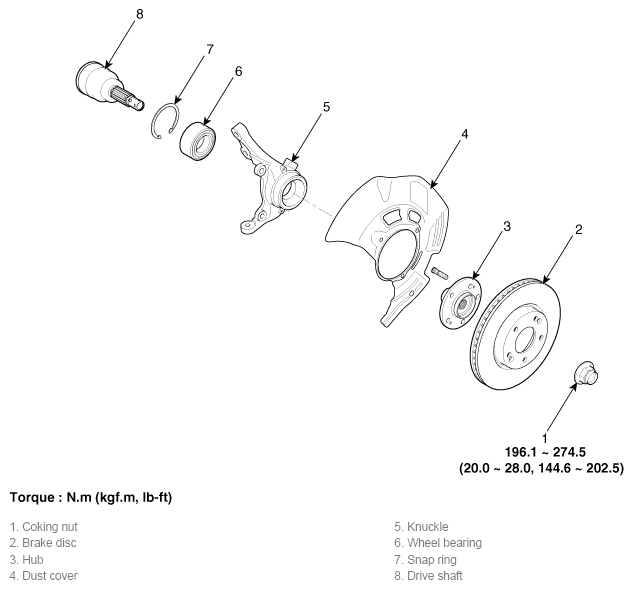

Fig 1: Exploded View Of Front Hub - Axle With Torque Specification
G11784436Courtesy of KIA MOTORS AMERICA, INC.
