Components Location

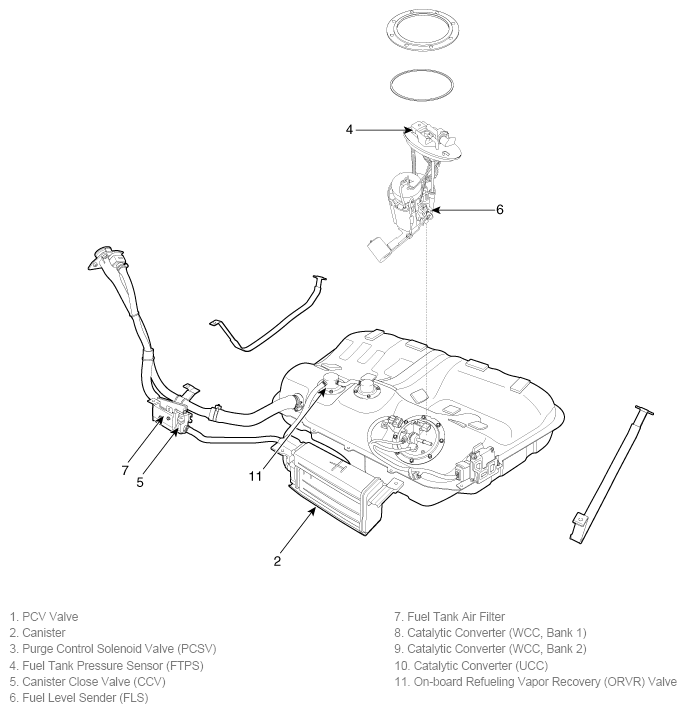

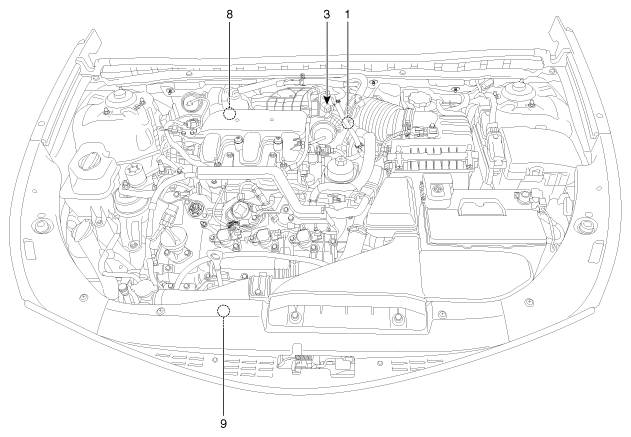

Fig 1: Locating Emission Control System Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

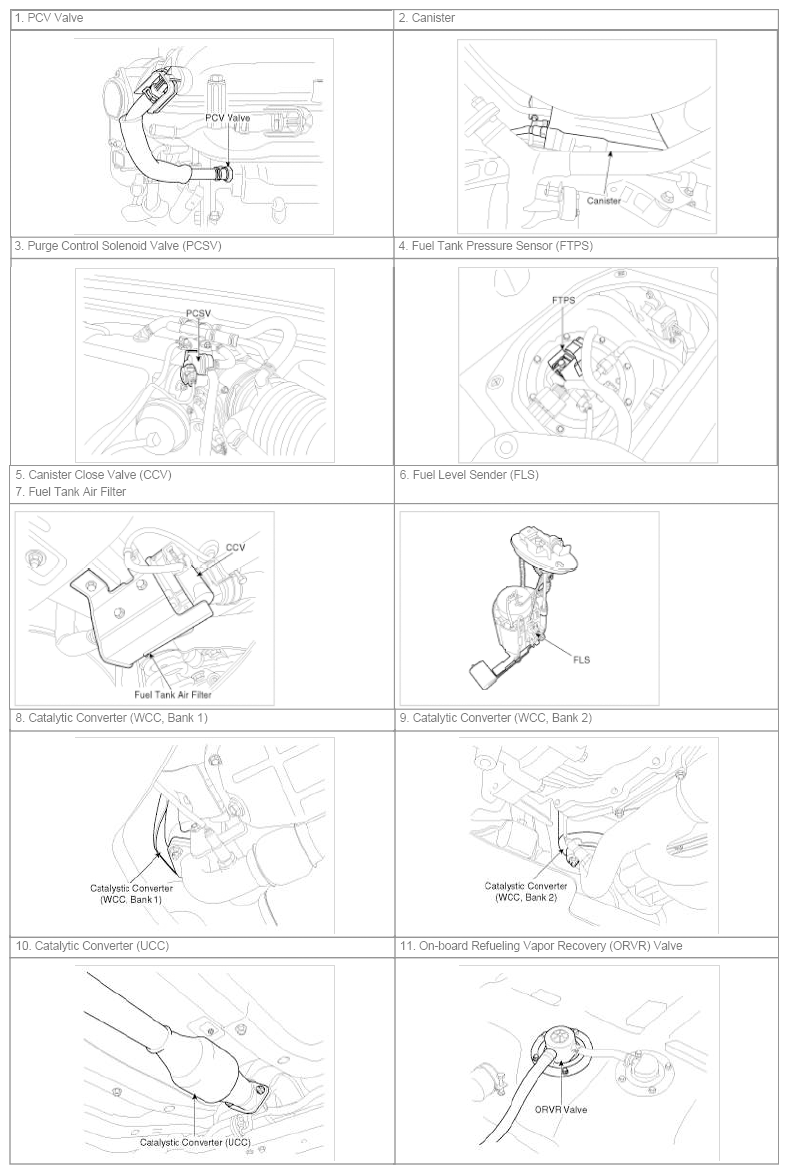

Fig 2: Locating Emission Control System Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
