Components And Components Location: Components

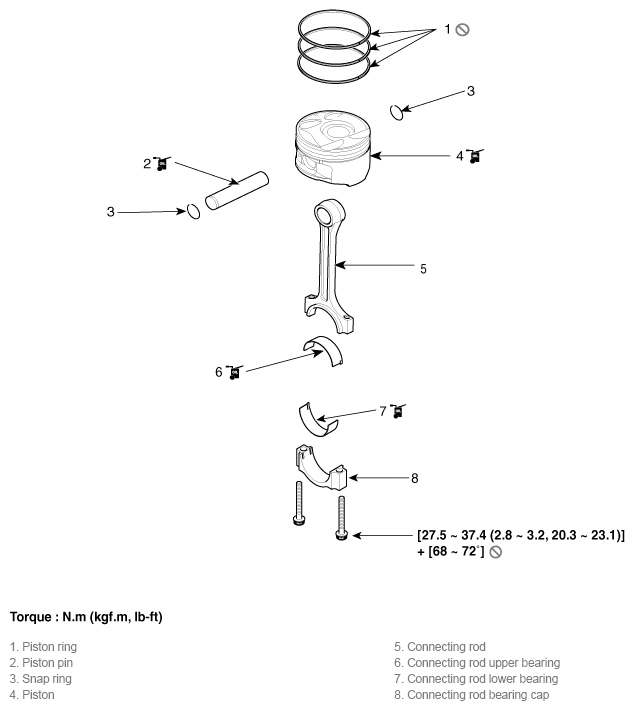

Fig 1: Piston And Connecting Rod Components With Torque Specification
G11783621Courtesy of KIA MOTORS AMERICA, INC.
