Signal Waveform & Data

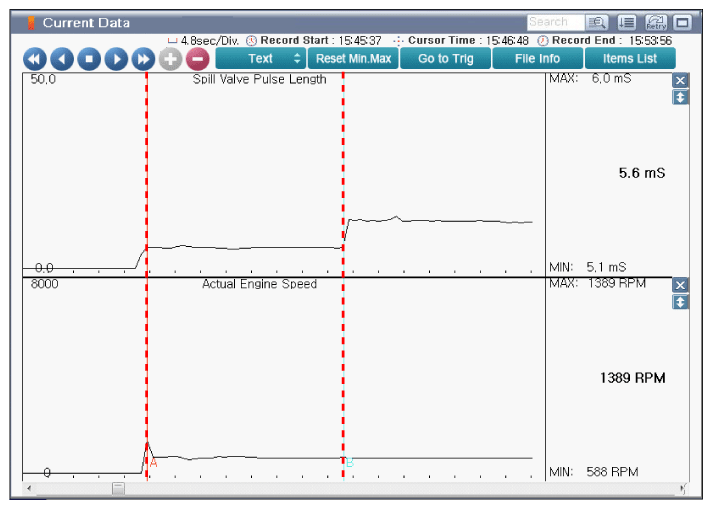

Fig 1: Screen Display - Normal Graph Of Spill Valve Pulse Length At Starting (Time Between A And B Approx. 37Sec.)

Courtesy of KIA MOTORS AMERICA, INC.

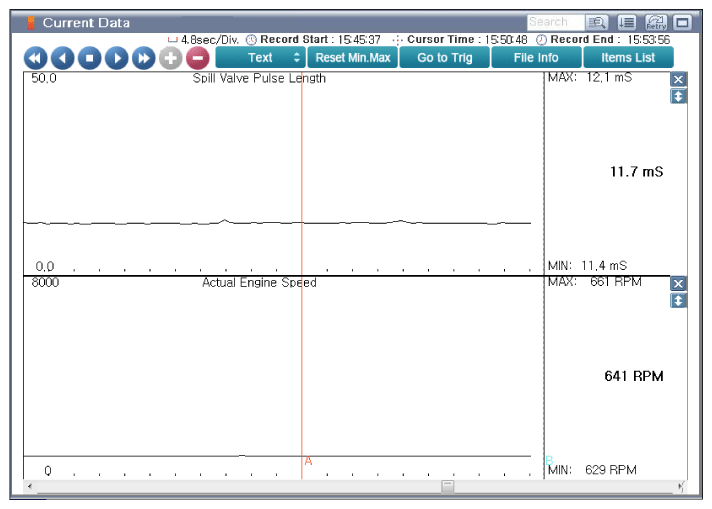

Fig 2: Screen Display - Normal Graph Of Spill Valve Pulse Length At Idle

Courtesy of KIA MOTORS AMERICA, INC.

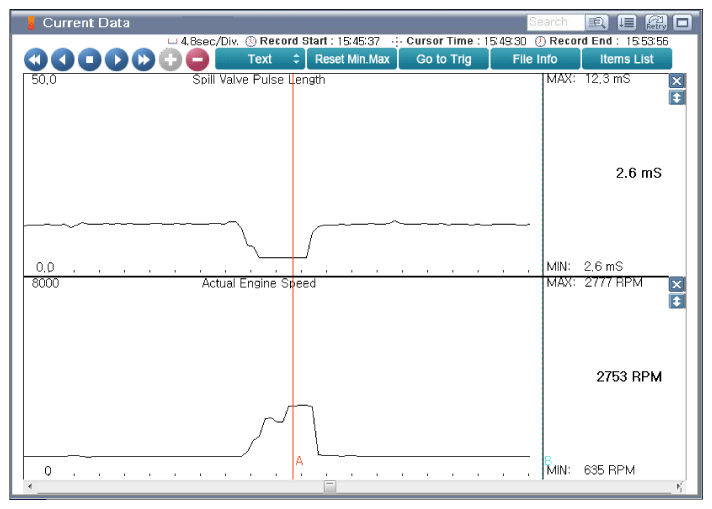

Fig 3: Screen Display - Normal Graph Of Spill Valve Pulse Length At Approx. 3000RPM

Courtesy of KIA MOTORS AMERICA, INC.

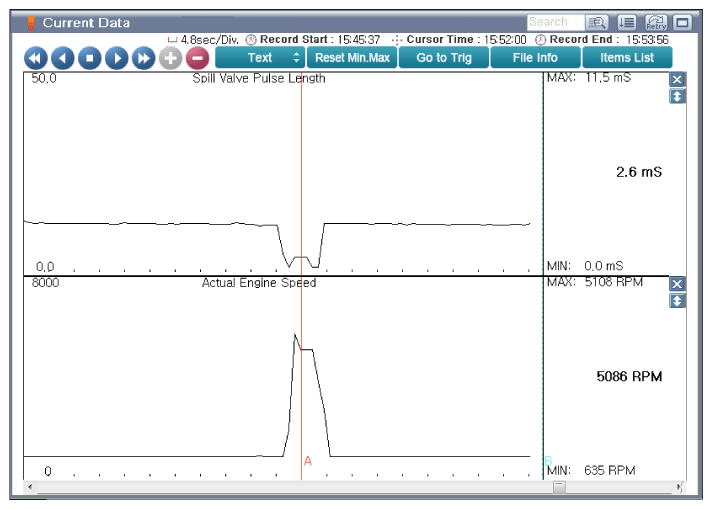

Fig 4: Screen Display - Normal Graph Of Spill Valve Pulse Length At WOT

Courtesy of KIA MOTORS AMERICA, INC.
