Signal Waveform & Data

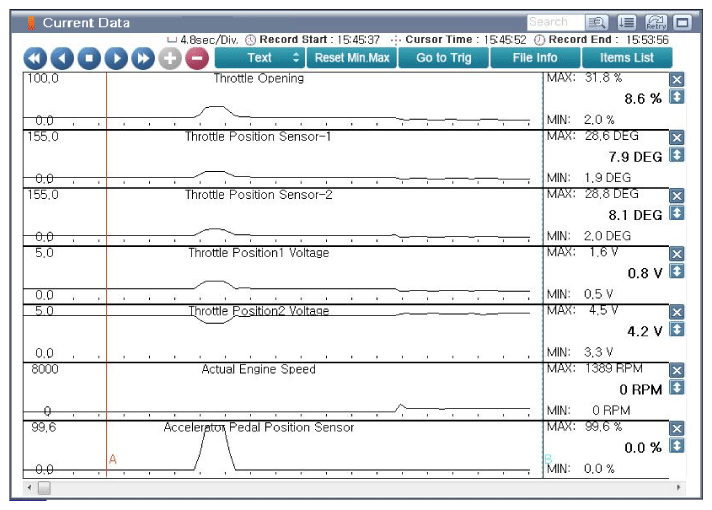

Fig 1: Screen Display - Normal Graph Of TPS1 & TPS2 With Acceleration Pedal Not Depressed With IG ON
G11790103Courtesy of KIA MOTORS AMERICA, INC.

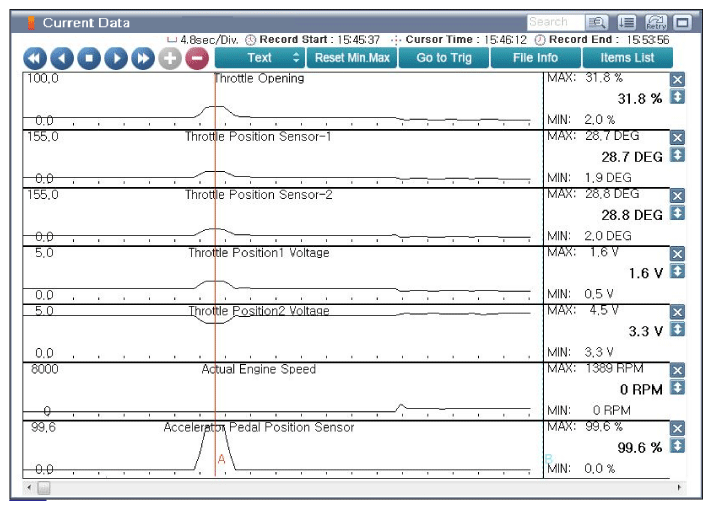

Fig 2: Screen Display - Normal Graph Of TPS1 & TPS2 With Acceleration Pedal Depressed With IG ON
G11790104Courtesy of KIA MOTORS AMERICA, INC.
