Engine Control System Diagnosis (1 Of 3)
>>
DTC P0122: Throttle Position Sensor 1 Signal Circuit Low Input
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

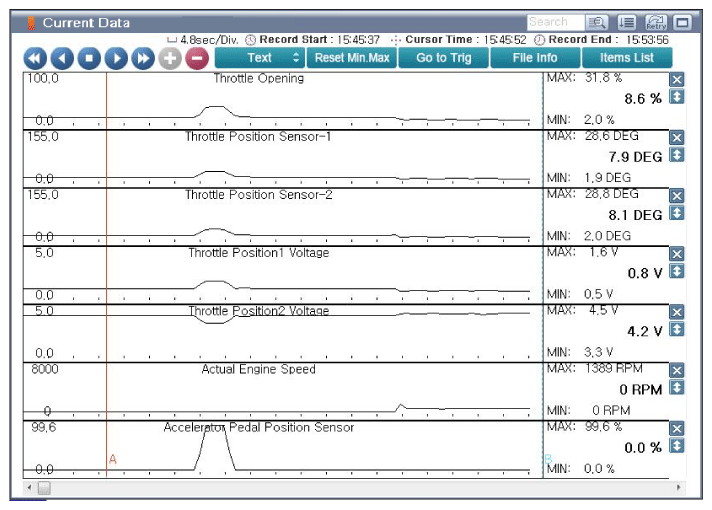

Fig 1: Screen Display - Normal Graph Of TPS1 & TPS2 With Acceleration Pedal Not Depressed With IG ON
Courtesy of KIA MOTORS AMERICA, INC.

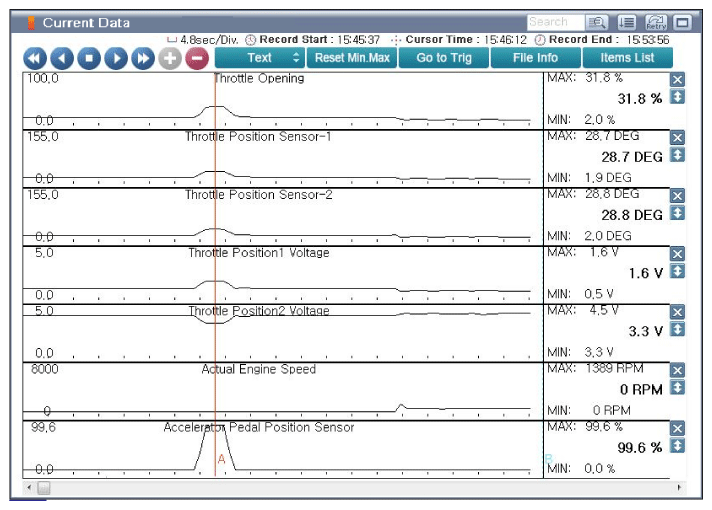

Fig 2: Screen Display - Normal Graph Of TPS1 & TPS2 With Acceleration Pedal Depressed With IG ON
Courtesy of KIA MOTORS AMERICA, INC.
